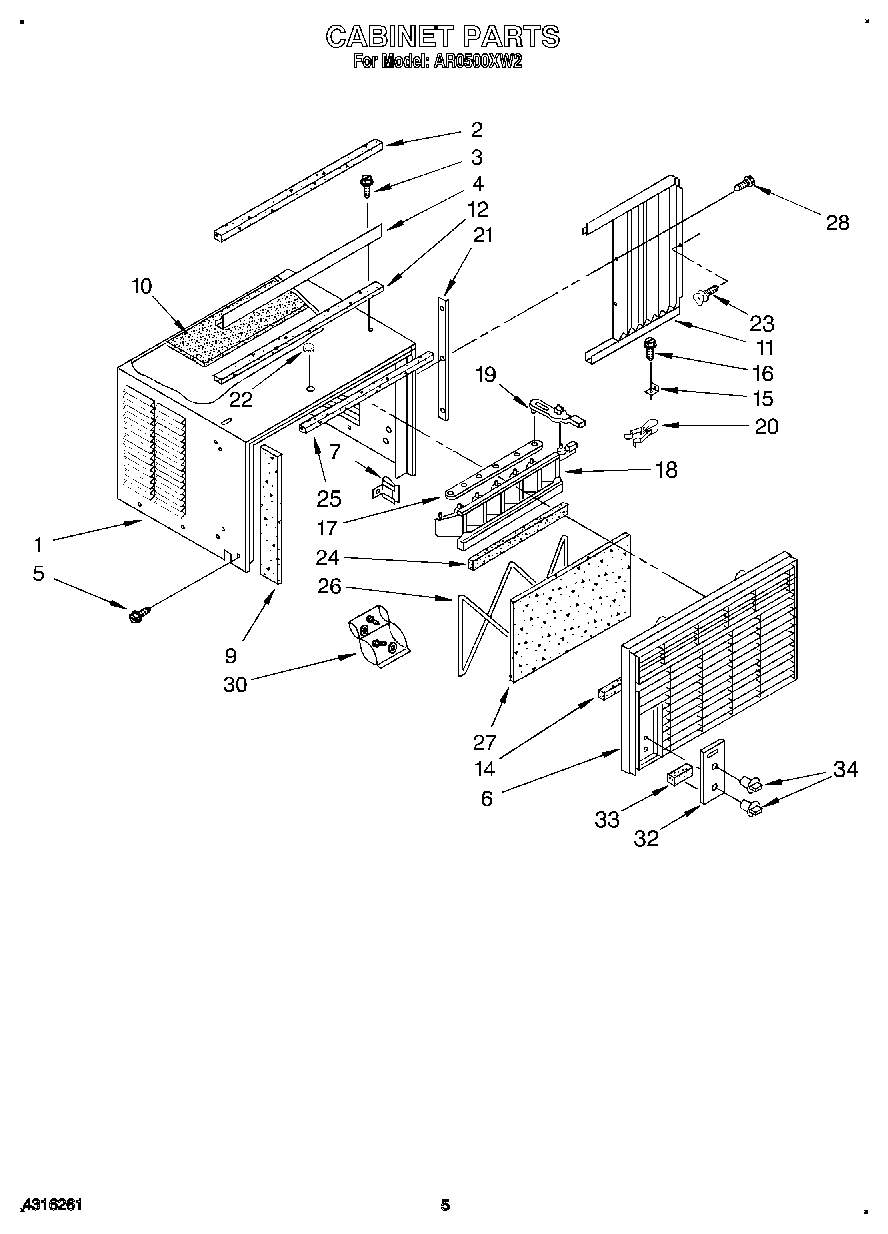

AR0500XW2 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP308685 Whirlpool Microwave Screw
4	Channel, Top
5	WP489069 Whirlpool Compactor Screw
6	Front, Cabinet Assembly
7	Clip, Vertical Louver
9	Insulation, Side
10	Insulation, Top
11	Curtain (R.S.)
11	Curtain (L.S.)
12	Seal, Strip
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Louver (2)
18	Louver, Vertical
19	Handle, Louver (2)
20	Detent Spring (2)
21	Retainer, Curtain (2)
22	Cover, Hole
23	Thumbscrew (2)
24	Seal, Vertical Louver
25	Seal
26	Retainer, Filter
27	Filter
28	Screw, 8-18 x 3/8
30	Bag, Accessory
32	Escutcheon
33	WP854334 Whirlpool Air Conditioner Sealing Strip
34	Knobs, (3)
