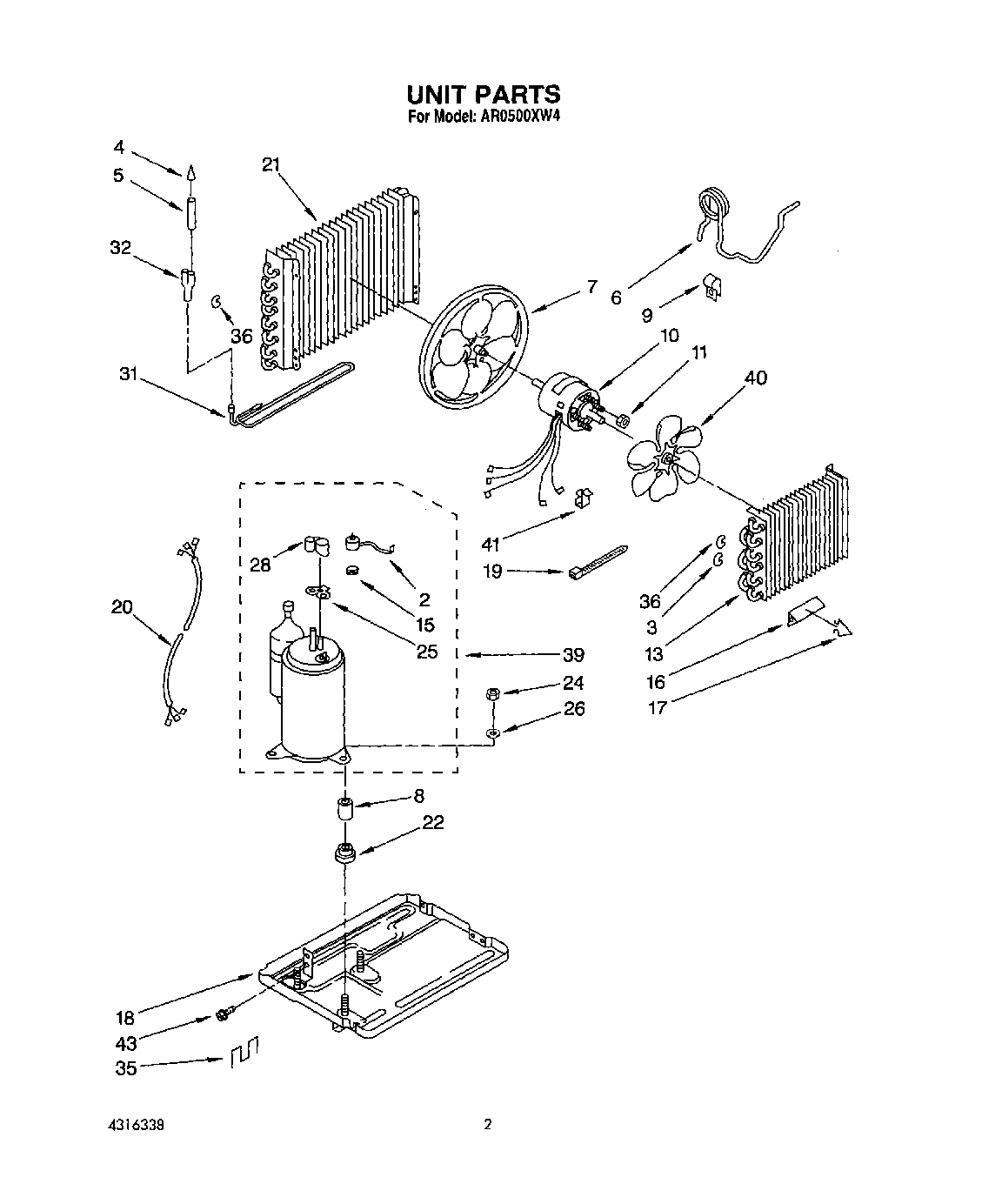

AR0500XW4 02 – UNIT, LIT/OPTIONAL

Products

Position	Product
	Instructions, Installation
	Guide, Operation
	Tech Sheet
	List, Repair Parts
	Wiring Diagram
2	WP1161170 Whirlpool Air Conditioner Overload
3	Bend, Return Condenser (4)
4	Strainer
5	Tube & Strainer (Includes Illus. 4)
6	Tube, Restrictor
7	Blade, Fan
8	Sleeve, Compressor (3)
9	Clamp, Tube (2)
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
13	Evaporator
15	Spring, Overload
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	WPW10339879 Whirlpool Wire Tie
20	Harness, Wiring
21	Condenser
22	Grommet (4)
24	Locknut (3)
25	Gasket, Terminal Cover
26	WP120393 Whirlpool Washer Assembly
28	Cover, Terminal
31	Tube, Condenser Extension
32	Tube, Flow Divider
35	Clip, Mtg. (2) (Base to Front)
36	Bend, Return Condenser (10)
39	Compressor Assembly
40	Blade, Fan
41	Clamp, Wiring
43	WP489069 Whirlpool Compactor Screw
