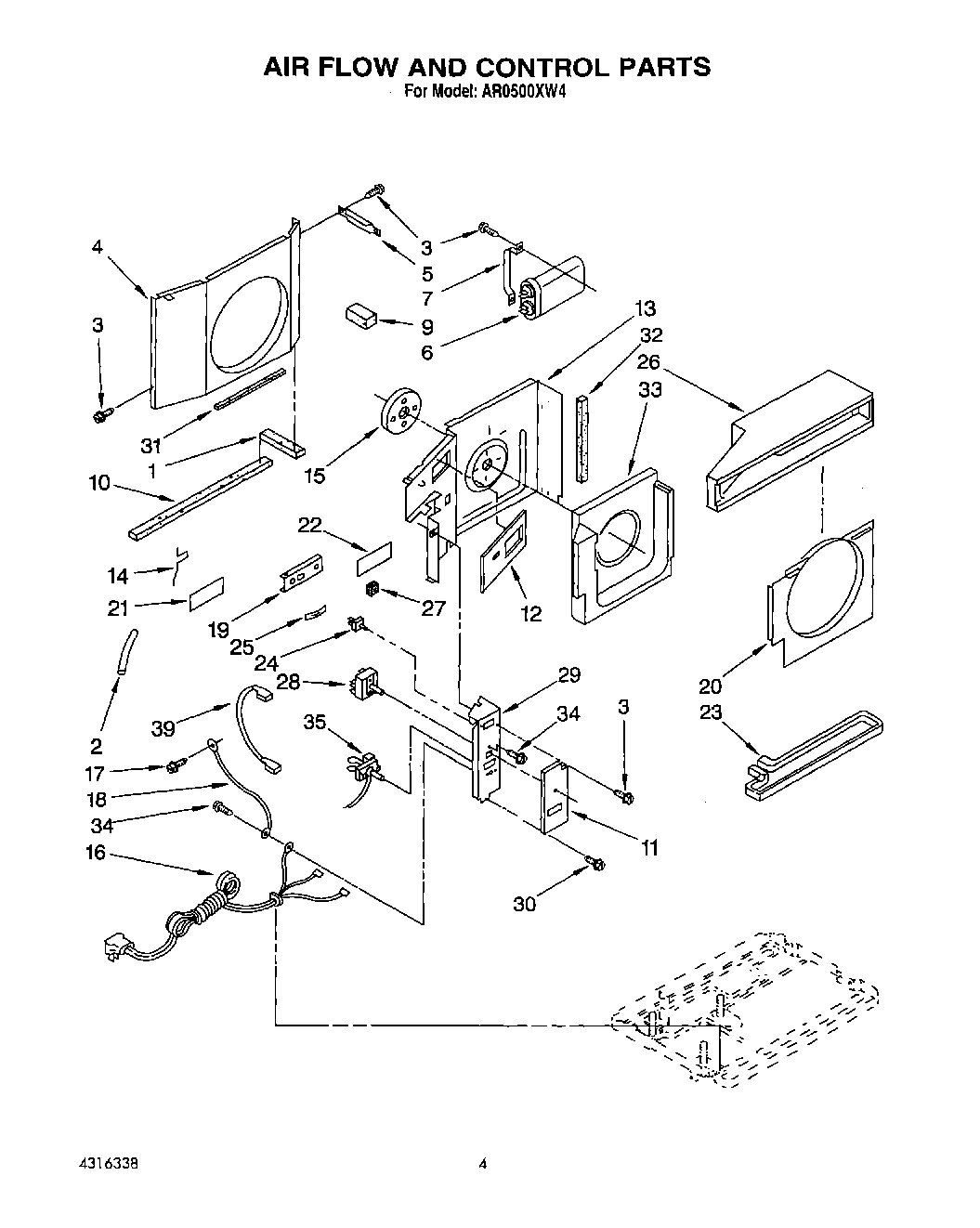

AR0500XW4 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	Sealer, Tube
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
9	Seal, Condenser (R.S.)
10	Seal
11	Insulation, Control Panel
12	Insulation, Exhaust Door
13	Wall, Dividing
14	Arm, Exhaust Door
15	Insulation, Motor
16	Cord, Appliance
17	Screw 8-18 x .295
18	Wire, Ground
19	Door, Exhaust
20	Shroud, Evaporator
21	Spacer
22	Barrier Protective
23	Pan, Evaporator
24	Actuator, Door
25	Spring, Retainer
26	Hood, Air Housing
27	Sealer, Tube
28	Switch, Rotary
29	Panel, Control
30	Screw, 8-18 x 3/8
32	WP854334 Whirlpool Air Conditioner Sealing Strip
33	Housing, Air
34	Screw, 6-32 x .175
35	Control, Temperature
39	Wire, Jumper
