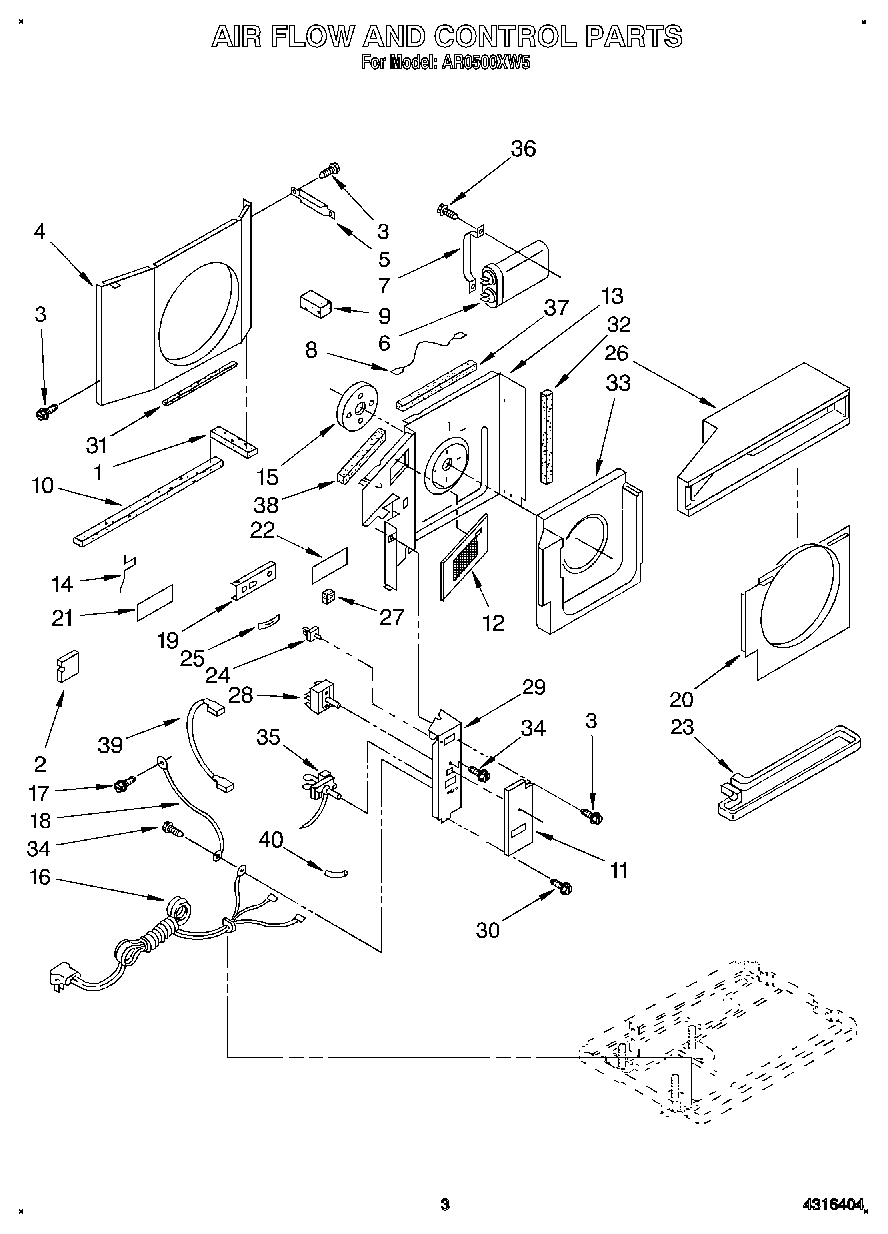

AR0500XW5 02 – AIRFLOW AND CONTROL

Products

Position	Product
	Seal, Condensate
2	Sealer, Foam Tube
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Wire, Lead
9	Seal, Condenser (R.S.)
10	Seal
11	Insulation, Control Panel
12	Screen/Insul. Assembly
13	Wall, Dividing
14	Arm, Exhaust Door
15	Insulation, Motor
16	Cord, Appliance
17	Screw 8-18 x .295
18	Wire, Ground
19	Door, Exhaust
20	Shroud, Evaporator
21	Spacer
22	Barrier Protective
23	Pan, Evaporator
24	Actuator, Door
25	Spring, Retainer
26	Hood, Air Housing
27	Sealer, Tube
28	Switch, Rotary
29	Panel, Control
30	Screw, 8-18 x 3/8
32	WP854334 Whirlpool Air Conditioner Sealing Strip
33	Housing, Air
34	Screw, 6-32 x .175
35	Control, Temperature
36	Screw, 8 x 3/8
37	Guard, Edge Seal
38	Guard, Edge Seal
39	Wire, Jumper
40	Insulation, Sleeve
