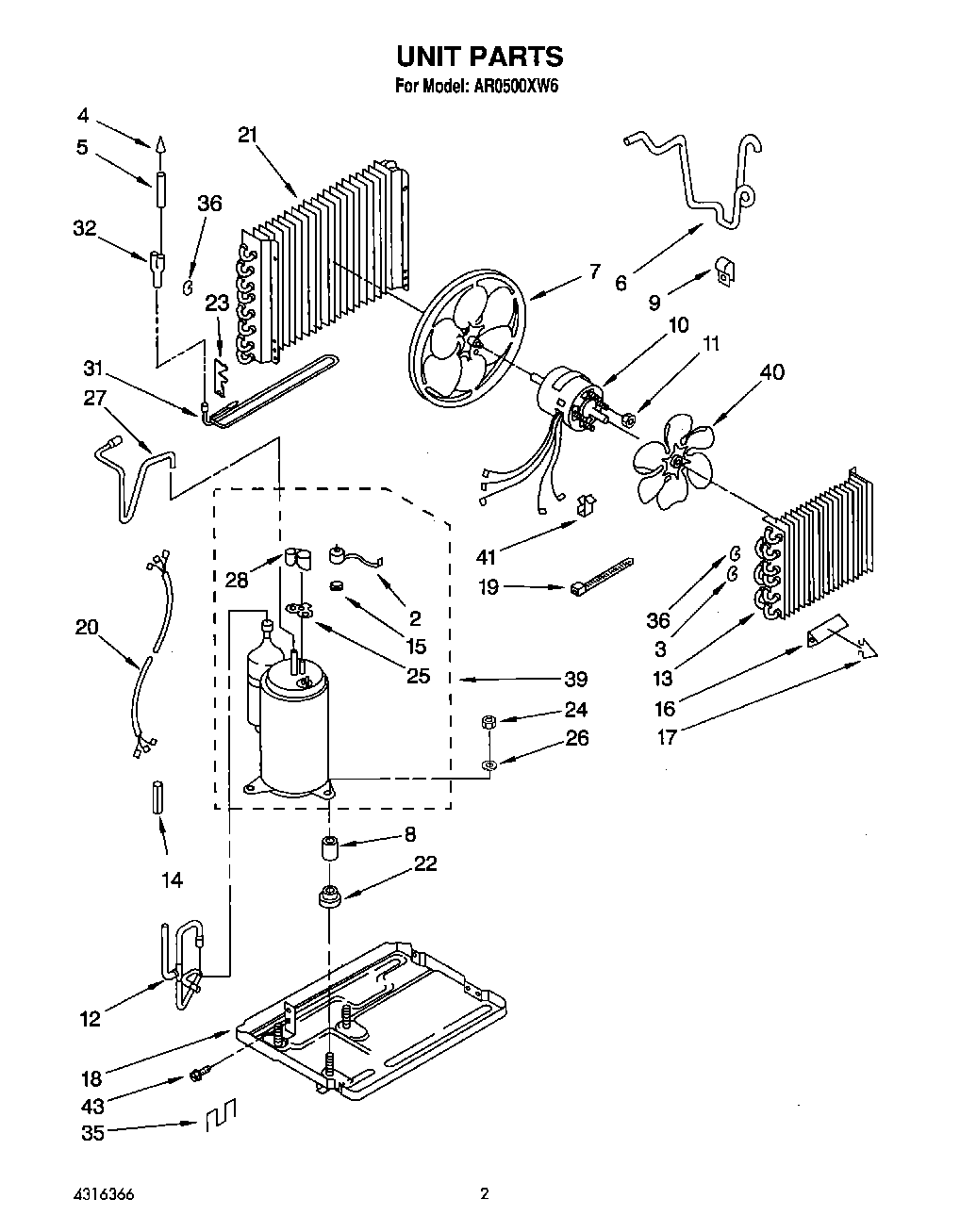

AR0500XW6 02 – UNIT, LIT/OPTIONAL

AR0500XW6 02 – UNIT, LIT/OPTIONAL

Written by

in

AR0500XW6 02 – UNIT, LIT/OPTIONAL

Products

PositionProduct
Guide, Operation
Tech Sheet
Wiring Diagram
List, Repair Parts
2WP1161170 Whirlpool Air Conditioner Overload
3Bend, Return Condenser (4)
4Strainer
5Tube & Strainer (Includes Illus. 4)
6Tube, Restrictor
7Blade, Fan
8Sleeve, Compressor (3)
9Clamp, Tube (2)
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12Suction, Tube
13Evaporator
14WPL 1162344
15Spring, Overload
16Anticipator, Temperature
17Clip, Anticipator
18Base
19WPW10339879 Whirlpool Wire Tie
20Harness, Wiring
21Condenser
22Grommet (4)
23Retainer, Wet Loop
24Locknut (3)
25Gasket, Terminal Cover
26WP120393 Whirlpool Washer Assembly
27Tube, Discharge
28Cover, Terminal
31Tube, Condenser Extension
32Tube, Flow Divider
35Clip, Mtg. (2) (Base to Front)
36Bend, Return Condenser (10)
39Compressor Assembly
40Blade, Fan
41Clamp, Wiring
43WP489069 Whirlpool Compactor Screw
