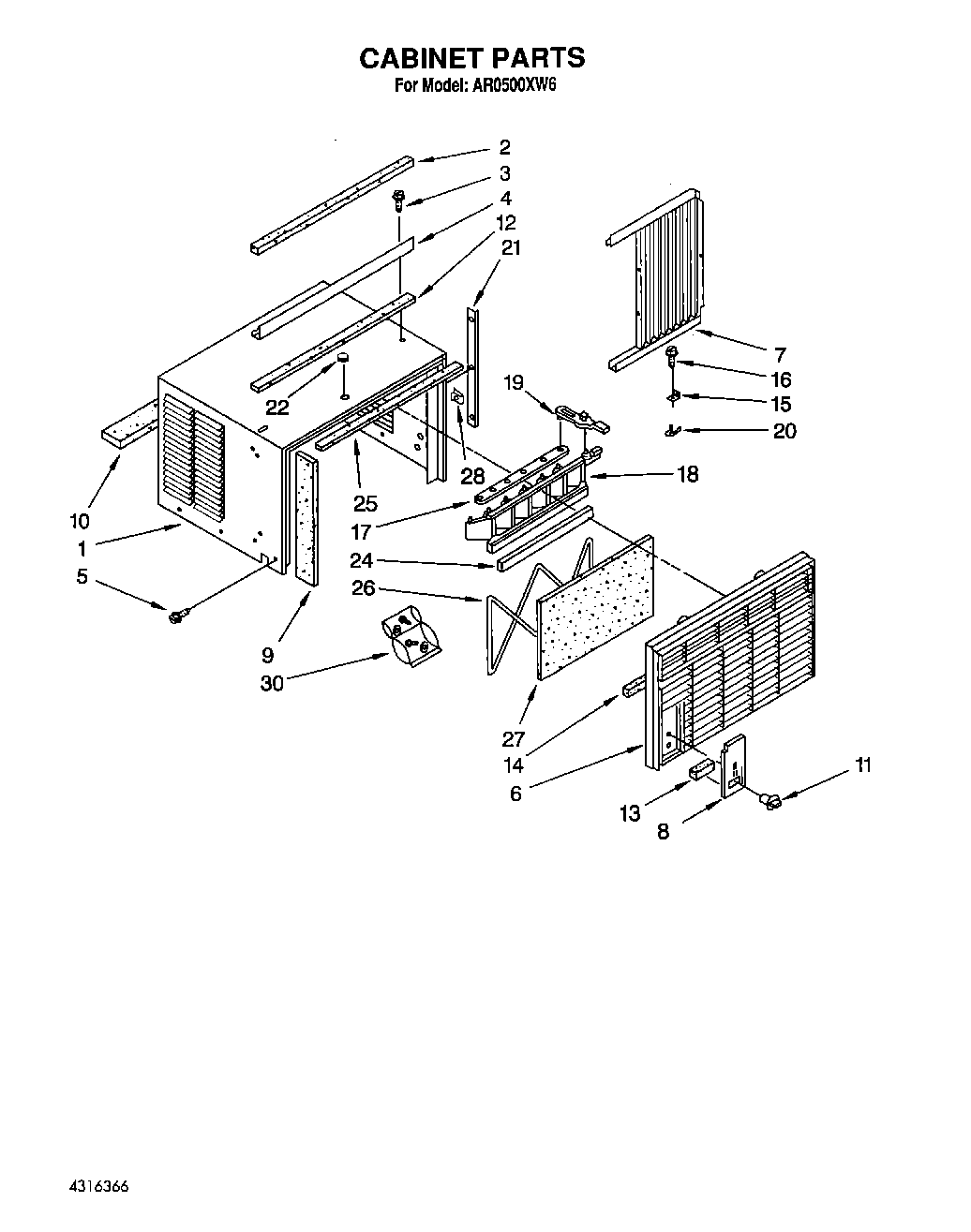

AR0500XW6 04 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP308685 Whirlpool Microwave Screw
4	Channel, Top
5	WP489069 Whirlpool Compactor Screw
6	Front, Cabinet Assembly
7	Housing, Curtain (L.S.)
7	Housing, Curtain (R.S.)
8	Escutcheon
9	Insulation, Side
10	Insulation, Top
11	Knobs, (3)
12	Seal, Strip
13	WP854334 Whirlpool Air Conditioner Sealing Strip
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Louver (2)
18	Louver, Vertical
19	Handle, Louver (2)
20	Detent Spring (2)
21	Retainer, Curtain (2)
22	Cover, Hole
24	Seal, Vertical Louver
25	Seal
26	Retainer, Filter
27	Filter
28	Clip, Vertical Louver
30	Bag, Accessory
