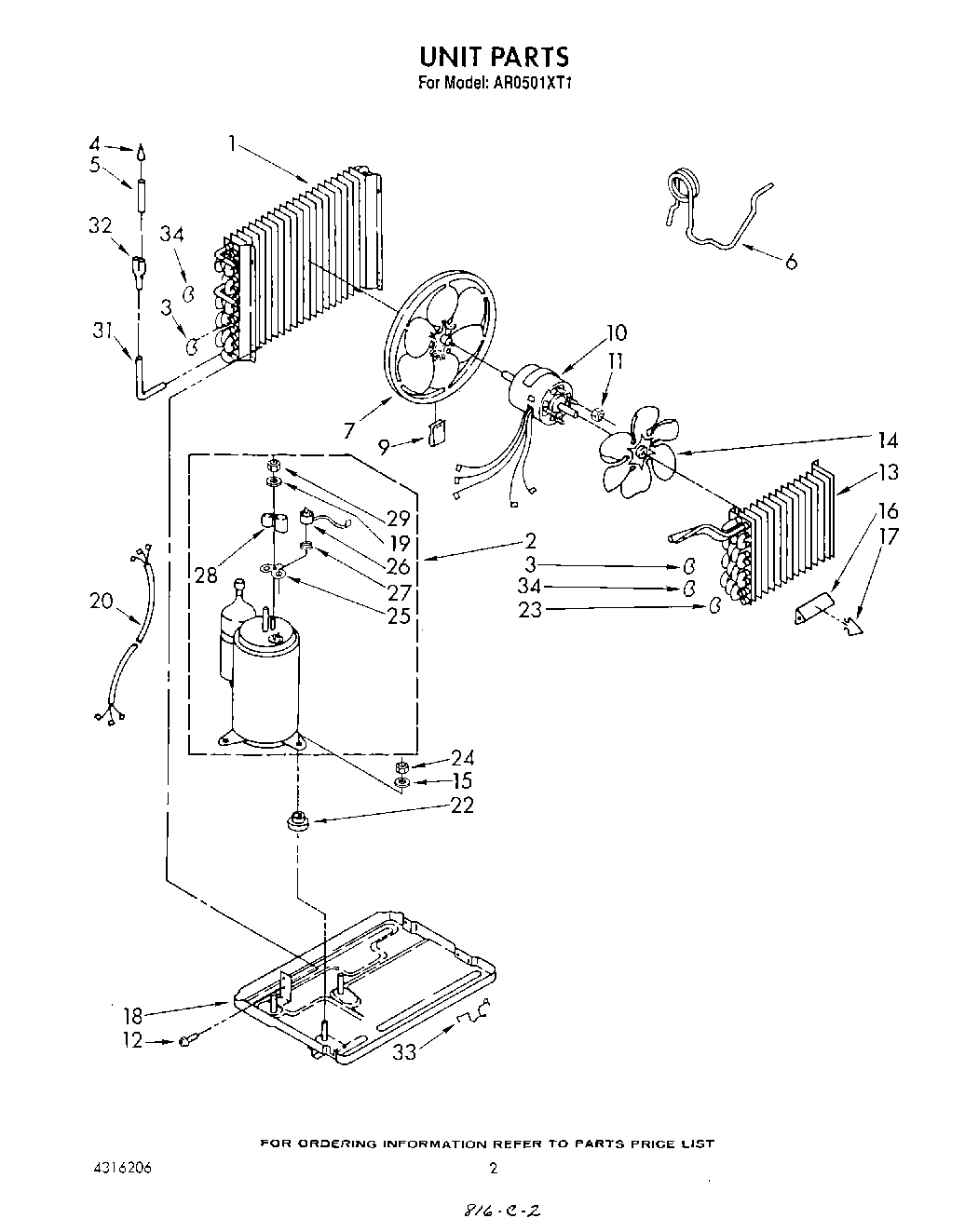

AR0501XT1 02 – UNIT

Products

PositionProduct
1Condenser
2Compressor
3Bend, Return Condenser (10)
4Strainer
5Tube & Strainer (Includes Item 23)
6Tube, Restrictor
7Blade, Fan
9Clip, Balancing
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12WP489069 Whirlpool Compactor Screw
13Evaporator
14Blade, Fan
15WP120393 Whirlpool Washer Assembly
16Anticipator, Temperature
17Clip, Anticipator
18Base
19Gasket, Nut
20Harness, Wiring
22Grommet
23Bend Return
24Nut, Hex (4)
25WP950035 Whirlpool Cover Gasket
26Overload
27Spring, Overload
28WP950036 Whirlpool Cover Assembly
29WP950027 Whirlpool Mounting Nut
31Tube, 90~ Connect
32Tube, Flow Divider
33Clip, Mtg. (2) (Base to Front)
34Installation, Instructions
34Guide, Operation
34Bend, Return Condenser (4)
34Literature Parts (List, Repair Parts)
34Sheet, Tech And Wiring Diagram
34Guide, Energy
