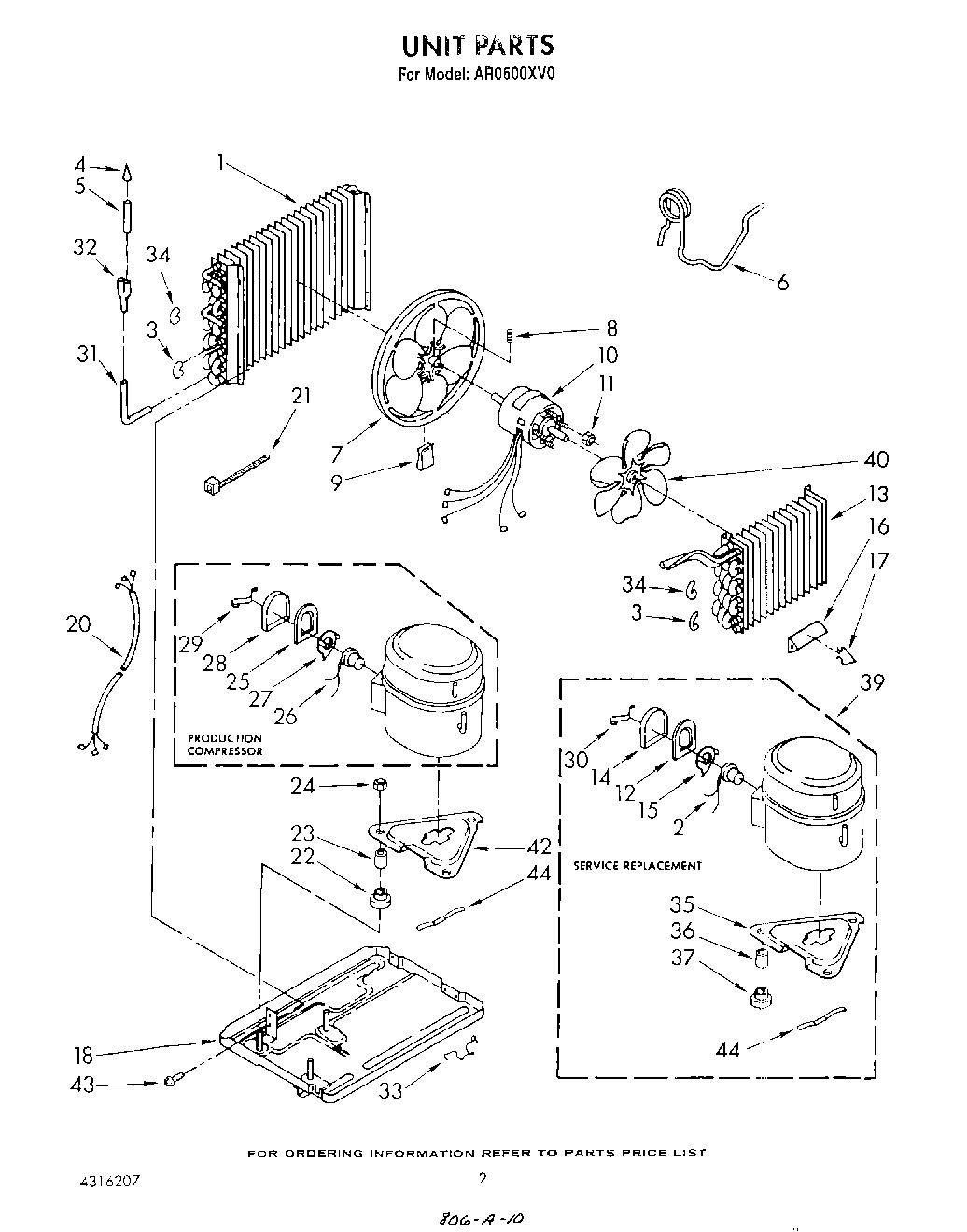

| 1 | Condenser |
| 2 | Overload |
| 3 | Bend, Return Evaporator (11) |
| 4 | Strainer |
| 5 | Tube & Strainer (Includes Item 23) |
| 6 | Tube, Restrictor |
| 7 | Blade, Fan |
| 8 | Setscrew, 5/16 x 1/4 |
| 9 | Clip, Balancing |
| 10 | Motor, Fan |
| 11 | WP488130 Whirlpool Air Conditioner Nut |
| 13 | Evaporator |
| 15 | Spring, Overload |
| 16 | Anticipator, Temperature |
| 17 | Clip, Anticipator |
| 18 | Base |
| 20 | Harness, Wiring |
| 21 | WPW10339879 Whirlpool Wire Tie |
| 22 | Grommet (4) |
| 23 | Sleeve (3) |
| 24 | Locknut (3) |
| 25 | Gasket, Terminal Cover |
| 26 | Overload |
| 27 | Spring, Overload |
| 28 | Cover, Terminal |
| 29 | Retainer, Terminal Cover |
| 30 | Retainer, Terminal Cover |
| 31 | Tube, Outlet |
| 32 | Tube, Flow Divider |
| 33 | Clip, Mtg. (2) (Base to Front) |
| 34 | Bend, Return Evaporator (4) |
| 35 | Plate, Mtg |
| 36 | Sleeve (4) |
| 37 | Grommet (4) |
| 39 | Compressor Assembly |
| 40 | Fan, Blade Evaporator |
| 42 | Plate, Mounting Compressor |
| 43 | Screw, Repair |
| 43 | WP489069 Whirlpool Compactor Screw |
| 44 | Guide, Energy |
| 44 | Guide, Operation |
| 44 | Spring, Clip |
| 44 | Sheet, Tech And Wiring Diagram |
| 44 | Literature Parts (List, Repair Parts) |
