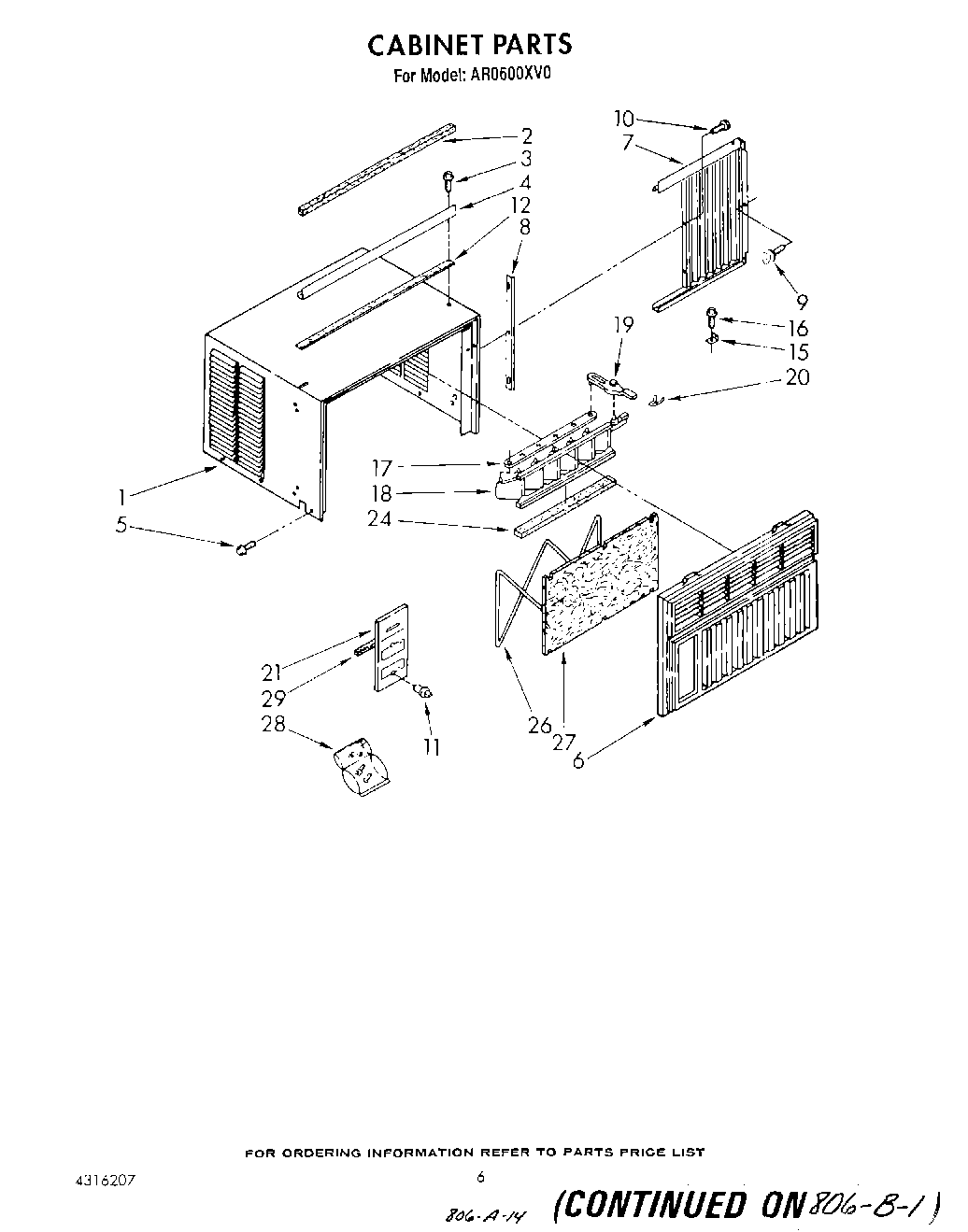

AR0600XV0 04 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP308685 Whirlpool Microwave Screw
4Channel, Top
5WP489128 Whirlpool Refrigerator Screw
6Front, Cabinet Assembly
7Housing, Curtain (L.S.)
7Housing, Curtain (R.S.)
8Retainer, Curtain (2)
9Thumbscrew (2)
10Screw, 8 x 7/16
11Knob, Control (3)
12Seal, Strip
15Bracket
16Screw, Wood 8-15 x .750
17Link, Louver (2)
18Louver, Vertical
19Handle, Louver (2)
20Detent Spring (2)
21Plate, Escutcheon
24Seal, Vertical Louver
26Retainer, Filter
27Filter
28Bag, Accessory
29WP854334 Whirlpool Air Conditioner Sealing Strip
