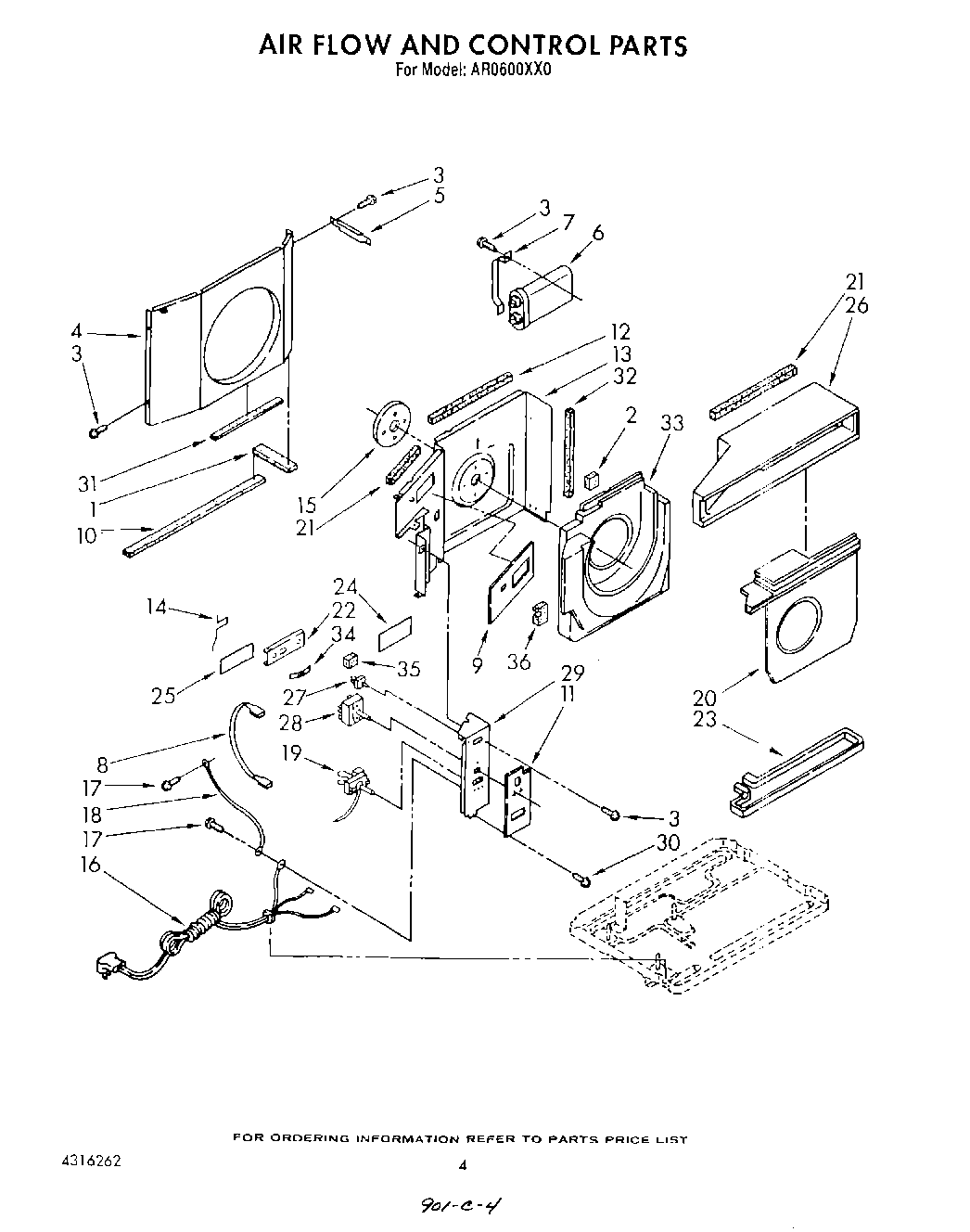

AR0600XX0 03 – AIRFLOW AND CONTROL

AR0600XX0 03 – AIRFLOW AND CONTROL

Written by

in

AR0600XX0 03 – AIRFLOW AND CONTROL

Products

PositionProduct
1Seal, Condensate
2Seal, Condenser (R.S.)
3Screw, 8 x 3/8
4Shroud, Condenser
5Support, Unit
6Capacitor, Running
7Bracket, Capacitor
8Wire, Jumper
9Insulation, Exhaust Door
10Seal
11Insulation, Control Panel
12WP854334 Whirlpool Air Conditioner Sealing Strip
13Wall, Dividing
14Arm, Exhaust Door
15Insulation, Motor
16Cord, Appliance
17Screw 8-18 x .295
18Wire, Ground
19Control, Temperature
20Orifice, Air Housing
22Door, Exhaust
23Pan, Evaporator
24Spacer
25Barrier Protective
26Hood, Air Housing
27Actuator, Door
28Switch, Rotary
29Panel, Control
30Screw, 6-32 x .175
33Housing, Air
34Spring, Retainer
35Sealer, Tube
36Sealer, Tube
