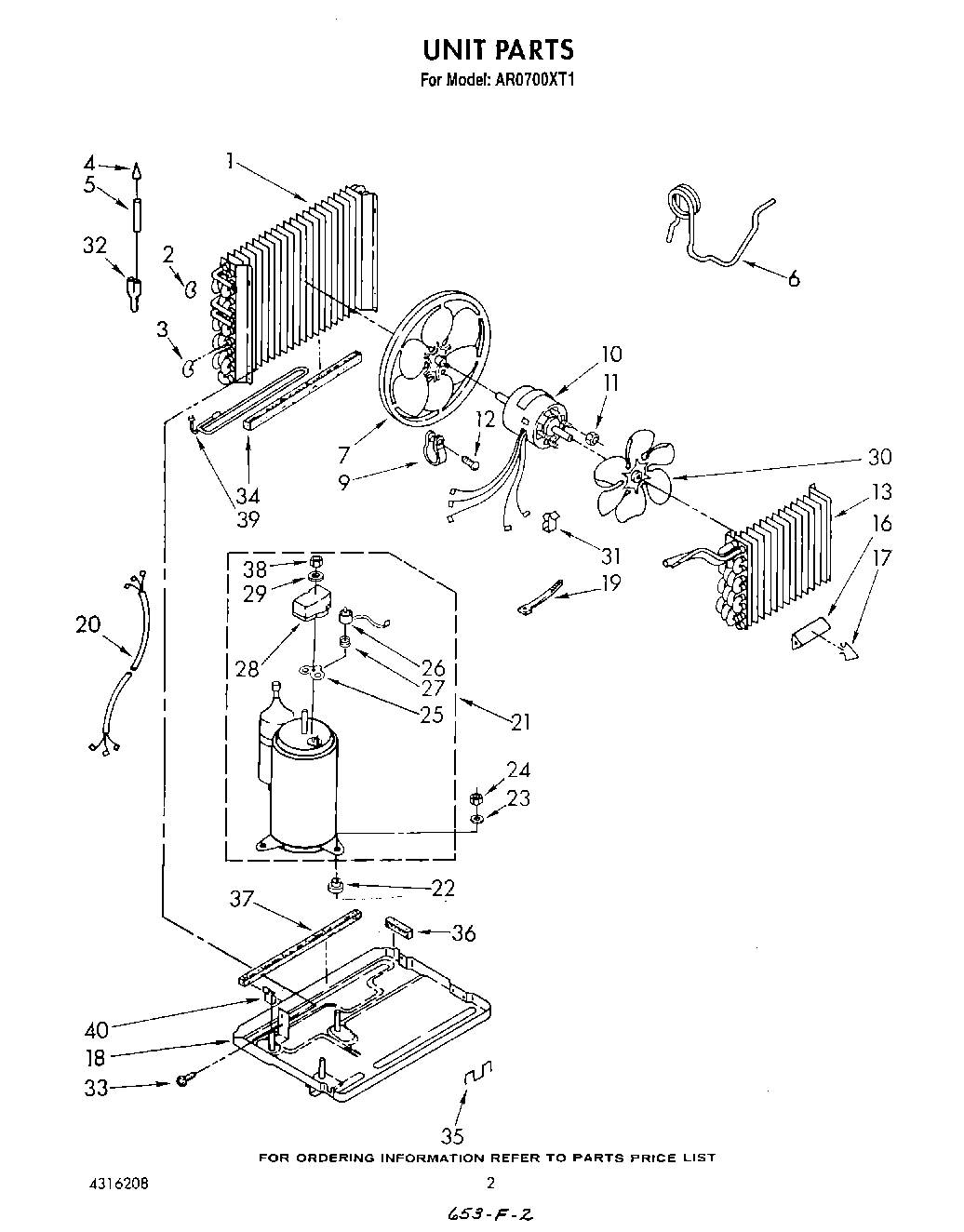

AR0700XT1 02 – UNIT

Products

Position	Product
	Wiring Diagram
	Installation, Instructions
	List, Repair Parts
	Sheet, Tech And Wiring Diagram
1	Condenser
2	Bend, Return Evaporator (4)
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Illus. 4)
6	tube, restrictor
7	Blade, Fan
9	Clip, Balancing
10	motor, fan
11	WP488130 Whirlpool Air Conditioner Nut
13	evaporator
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	WPW10339879 Whirlpool Wire Tie
20	Harness, Wiring
21	Compressor
22	Grommet
23	WP120393 Whirlpool Washer Assembly
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	WP1161170 Whirlpool Air Conditioner Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	Gasket, Nut
30	Fan, Blade Evaporator
31	Clamp, Wiring
32	Tube, Flow Divider
33	WP489069 Whirlpool Compactor Screw
33	Screw, Repair
34	WP854334 Whirlpool Air Conditioner Sealing Strip
35	Clip, Mtg. (2) (Base to Front)
36	Seal, Condensate
37	Seal, Base, Flange
38	WP950027 Whirlpool Mounting Nut
39	Tube, Condenser Extension
40	Clip, Tube
