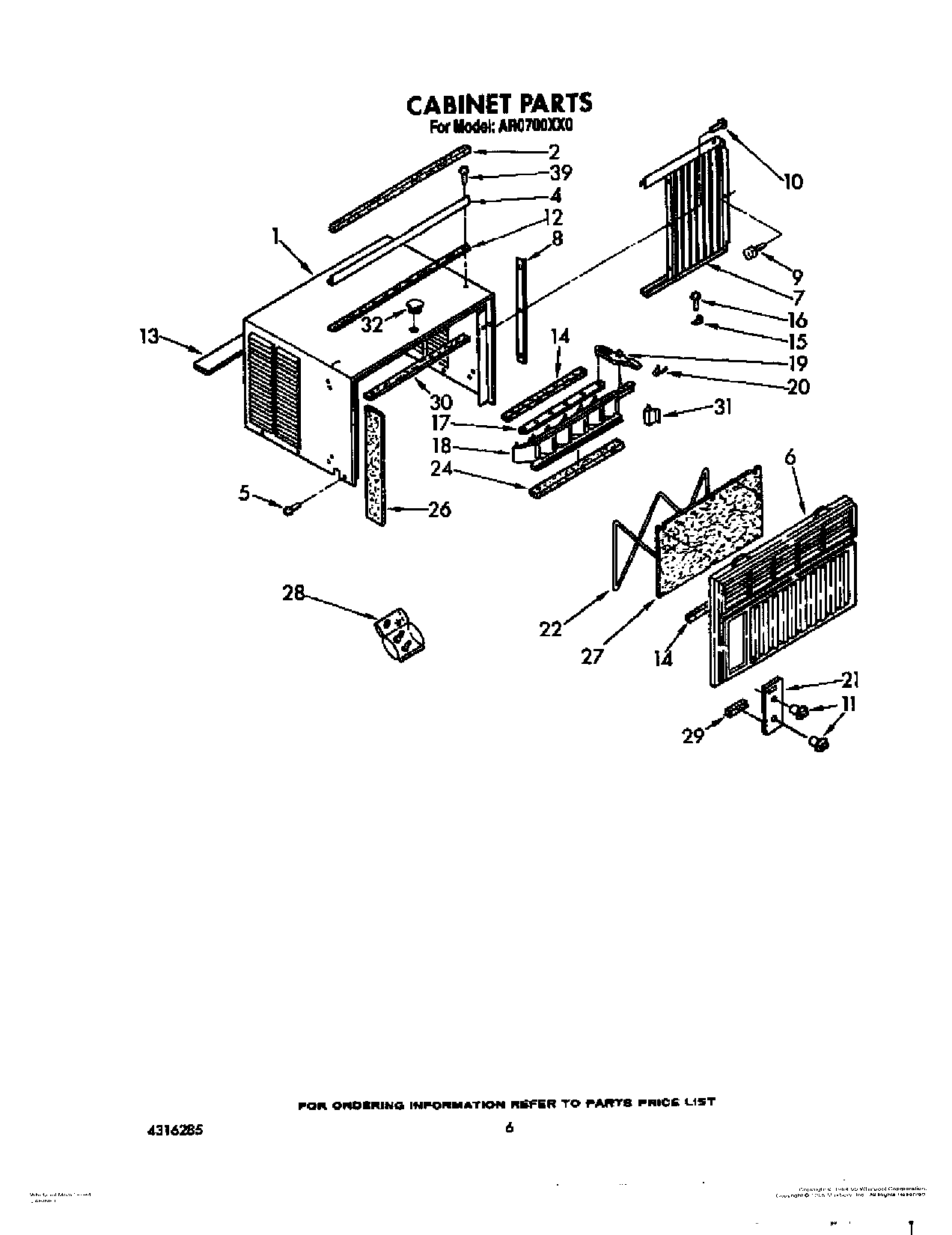

AR0700XX0 04 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
4Channel, Top
5WP489069 Whirlpool Compactor Screw
6Front, Cabinet Assembly
7Housing, Curtain (L.S.)
7Housing, Curtain (R.S.)
8Retainer, Curtain (2)
9Thumbscrew (2)
10Screw, 8 x 7/16
11Knobs, (3)
12Seal, Strip
13Insulation, Top
15Bracket
16Screw, Wood 8-15 x .750
17Link, Louver (2)
18Louver, Vertical
19Handle, Louver (2)
20Detent Spring (2)
21Escutcheon
22Retainer, Filter
24Seal, Vertical Louver
26Insulation, Side
27Filter
28Bag, Accessory
29WP854334 Whirlpool Air Conditioner Sealing Strip
30Seal
31Clip, Vertical Louver
32Cover, Hole
39Screw 8-18 x .295
