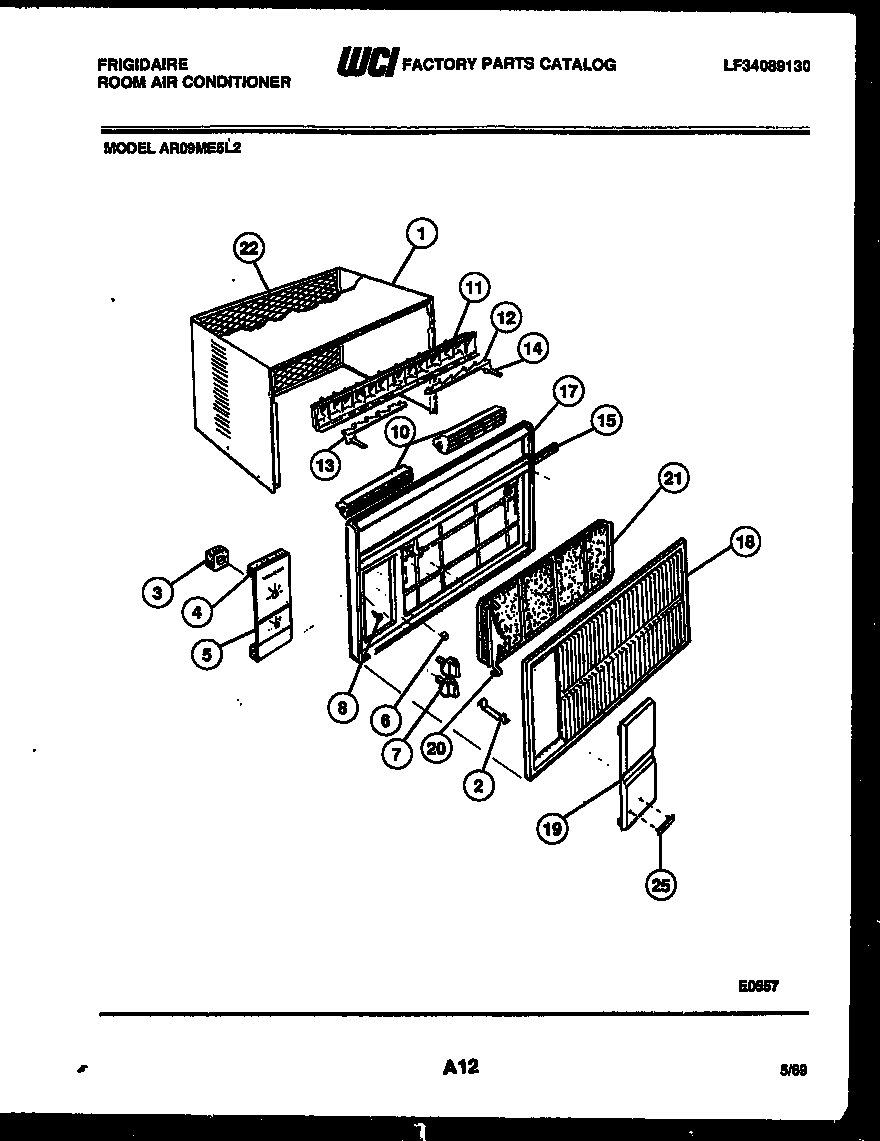

AR09ME5L2 02 – CABINET PARTS

Products

Position	Product
*32805	WCI 08016330
1	WCI 3203119
2	CLIP-FRONT TO BASE
3	SPACER-DIAL PLATE, ( NON-ILLUSTRATED)
4	SEAL-DIAL PLATE
5	DIAL-PLATE
6	WCI 3002189
7	WCI 08016109
8	SCREW-FRONT
10	FRAME-LOUVERS
11	VERT LOUVER AND LINK ASSY
12	LINK-VERT LOUVER RH
13	LINK- VERT LOUVER LH
14	CLIP-DETENT
15	WCI 08014101
17	WCI 3204214
18	WCI 3016551
19	WCI 08016198
20	TRACK-FILTER
21	FILTER-AIR-FRAMED
22	WCI 3203120
25	PLATE-NAME
