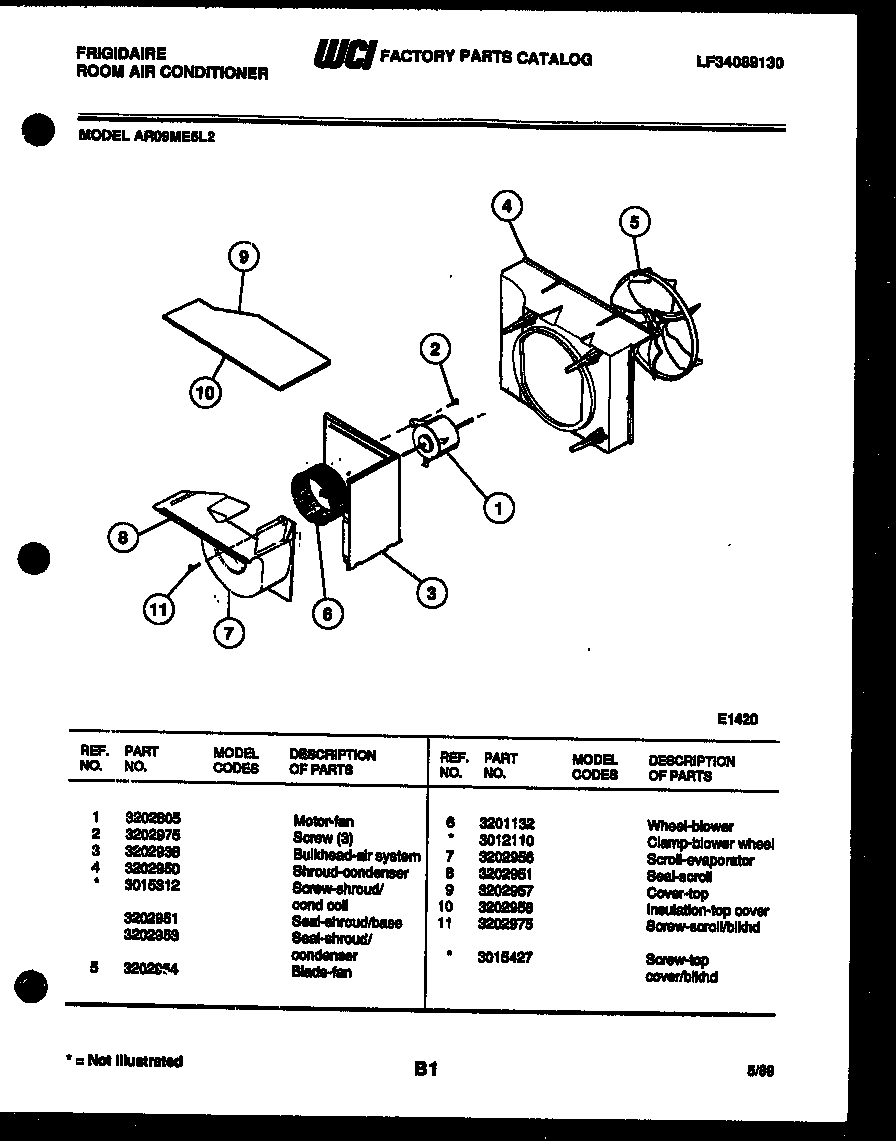

AR09ME5L2 04 – AIR HANDLING PARTS

Written by

Products

Position	Product
1	WCI 3202805
3	BULKHEAD-AIR SYSTEM
4A	134178901 Frigidaire Screw
4	WCI 3202950
4C	SEAL-SHROUD COND
5	WCI 3202954
6A	CLAMP-BLOWER WHEEL (NON-ILLUSTRATED)
6	WHEEL-BLOWER
7	WCI 3202956
8	SEAL-CONDENSER BASE (NON-ILLUSTRATED)
9	WCI 3202957
10	PAD – COVER
11	131202300 Frigidaire Screw
