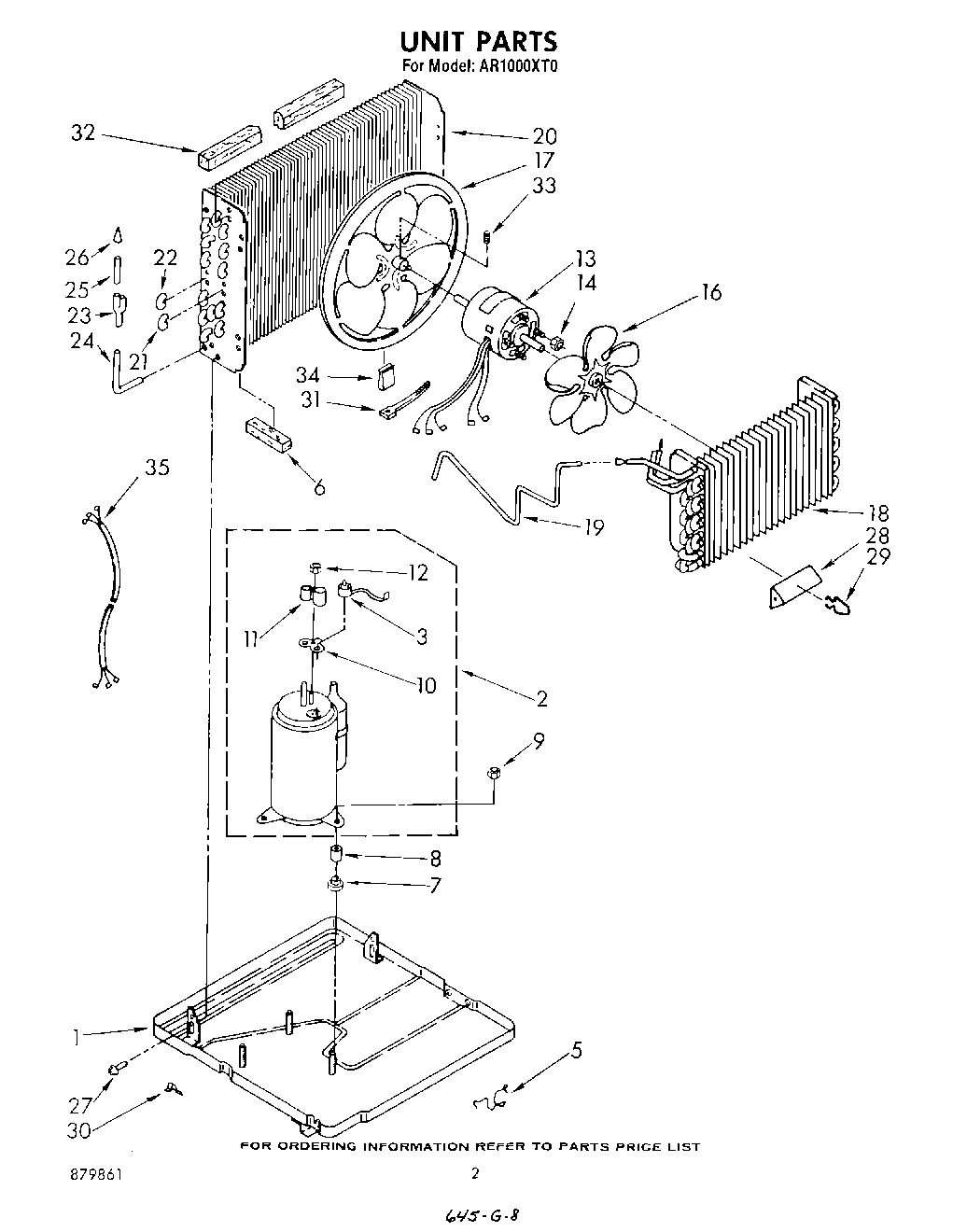

AR1000XT0 02 – UNIT, LITERATUREadmin2025-04-26T12:41:07+00:00AR1000XT0 02 – UNIT, LITERATURE
Products
| Position | Product |
|---|
| Guide, Energy |
| Guide, Operation |
| List, Repair Parts |
| Sheet, Tech And Wiring Diagram |
| Installation, Instructions |
| 1 | Base |
| 2 | Compressor |
| 3 | Overload |
| 5 | Clip, Mtg. (2) (Base to Front) |
| 6 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 7 | WP950021 Whirlpool Grommet |
| 8 | Sleeve (3) |
| 9 | Locknut (3) |
| 10 | Gasket, Terminal Cover |
| 11 | Cover, Terminal |
| 12 | Nut, Hex 1/4-28 |
| 13 | Motor, Fan |
| 14 | WP488130 Whirlpool Air Conditioner Nut |
| 15 | Clamp, Wiring |
| 16 | Blade, Fan (Evaporator) |
| 17 | Blade, Condenser Fan |
| 18 | Evaporator |
| 19 | Tube, Restrictor (Length 49.0``) |
| 20 | Condenser |
| 21 | Bend, Return Evaporator (4) |
| 22 | Bend, Return Evaporator (11) |
| 23 | Tube, Flow Divider |
| 24 | Tube, Outlet |
| 25 | Tube & Strainer (Includes Item 23) |
| 26 | Strainer |
| 27 | WP489069 Whirlpool Compactor Screw |
| 28 | Anticipator, Temperature |
| 29 | Clip, Anticipator |
| 30 | Clamp, Tube (2) |
| 31 | WPW10339879 Whirlpool Wire Tie |
| 32 | Seal, Condenser Top |
| 33 | Setscrew, 5/16 x 1/4 |
| 34 | Clip, Fan Balancing |
| 35 | Harness, Wiring |
