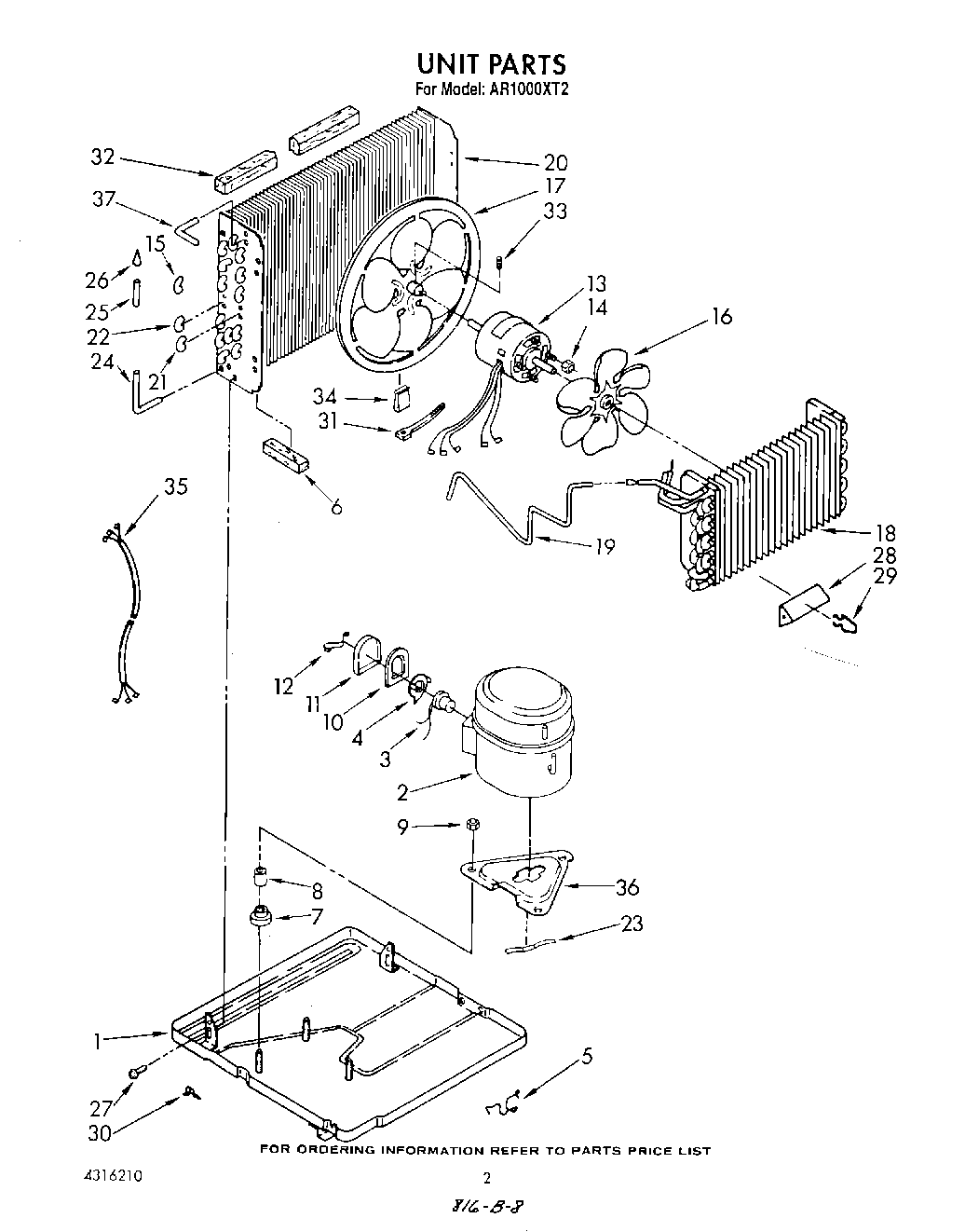

AR1000XT2 02 – UNIT

Products

Position	Product
	List, Repair Parts
	Installation, Instructions
	Sheet, Tech And Wiring Diagram
	Guide, Energy
	Guide, Operation
1	Base
2	Compressor
3	WP1161170 Whirlpool Air Conditioner Overload
4	Spring, Overload
5	Clip, Mtg. (2) (Base to Front)
6	WP854334 Whirlpool Air Conditioner Sealing Strip
7	Grommet, Compressor (3)
8	Sleeve, Compressor (3)
9	Locknut (3)
10	Gasket, Terminal Cover
11	Cover, Terminal
12	Retainer, Terminal Cover
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
15	Return Bend (2)
16	Blade, Fan (Evaporator)
17	Blade, Fan (Condenser)
18	Evaporator
19	Tube, Restrictor
20	Condenser
21	Bend, Return Evaporator (11)
22	Bend, Return Evaporator (4)
23	Spring, Clip
24	Tube, 90~ Connect
25	Tube & Strainer (Includes Item 23)
26	Strainer
27	WP489069 Whirlpool Compactor Screw
28	Anticipator, Temperature
29	Clip, Anticipator
30	Clamp, Tube (2)
31	Clamp, Wiring
32	Seal, Condenser Top
33	Setscrew, 5/16 x 1/4
34	Clip, Fan Balancing
35	Harness, Wiring
36	Plate, Compressor
37	Tube, 90~ Connect
