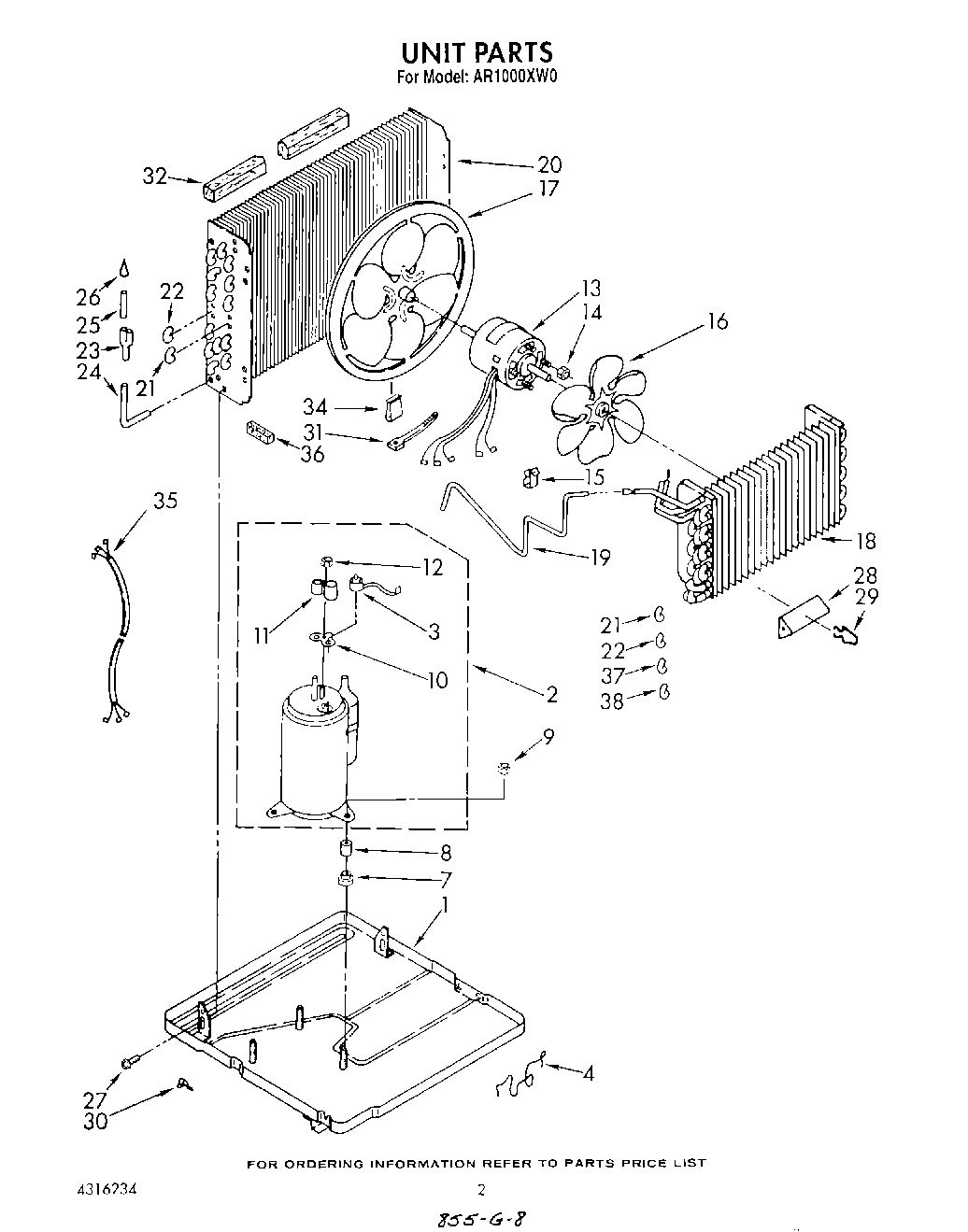

AR1000XW0 02 – UNIT

Products

Position	Product
	List, Repair Parts
	Guide, Operation
	Installation, Instructions
1	Base
2	Compressor
3	Overload
4	Clip, Mtg. (2) (Base to Front)
7	WP950021 Whirlpool Grommet
8	Sleeve (3)
9	Locknut (3)
10	Gasket, Terminal Cover
11	Cover, Terminal
12	Nut, Hex 1/4-28
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
15	Clamp, Wiring
16	Blade, Fan (Evaporator)
17	Blade, Condenser Fan
18	Evaporator
19	Tube, Restrictor (2)
20	Condenser
21	Bend, Return Condenser (4)
22	Bend, Return Condenser (10)
23	Tube, Flow Divider
24	Tube, Connecting
25	Tube & Strainer (Includes Item 23)
26	Strainer
27	WP489069 Whirlpool Compactor Screw
28	Anticipator, Temperature
29	Clip, Anticipator
30	Clamp, Tube (2)
31	WPW10339879 Whirlpool Wire Tie
32	Seal, Condenser Top
34	Clip, Fan Balancing
35	Harness, Wiring
36	WP854334 Whirlpool Air Conditioner Sealing Strip
37	Bend, Return Condenser (1)
38	Bend Return
