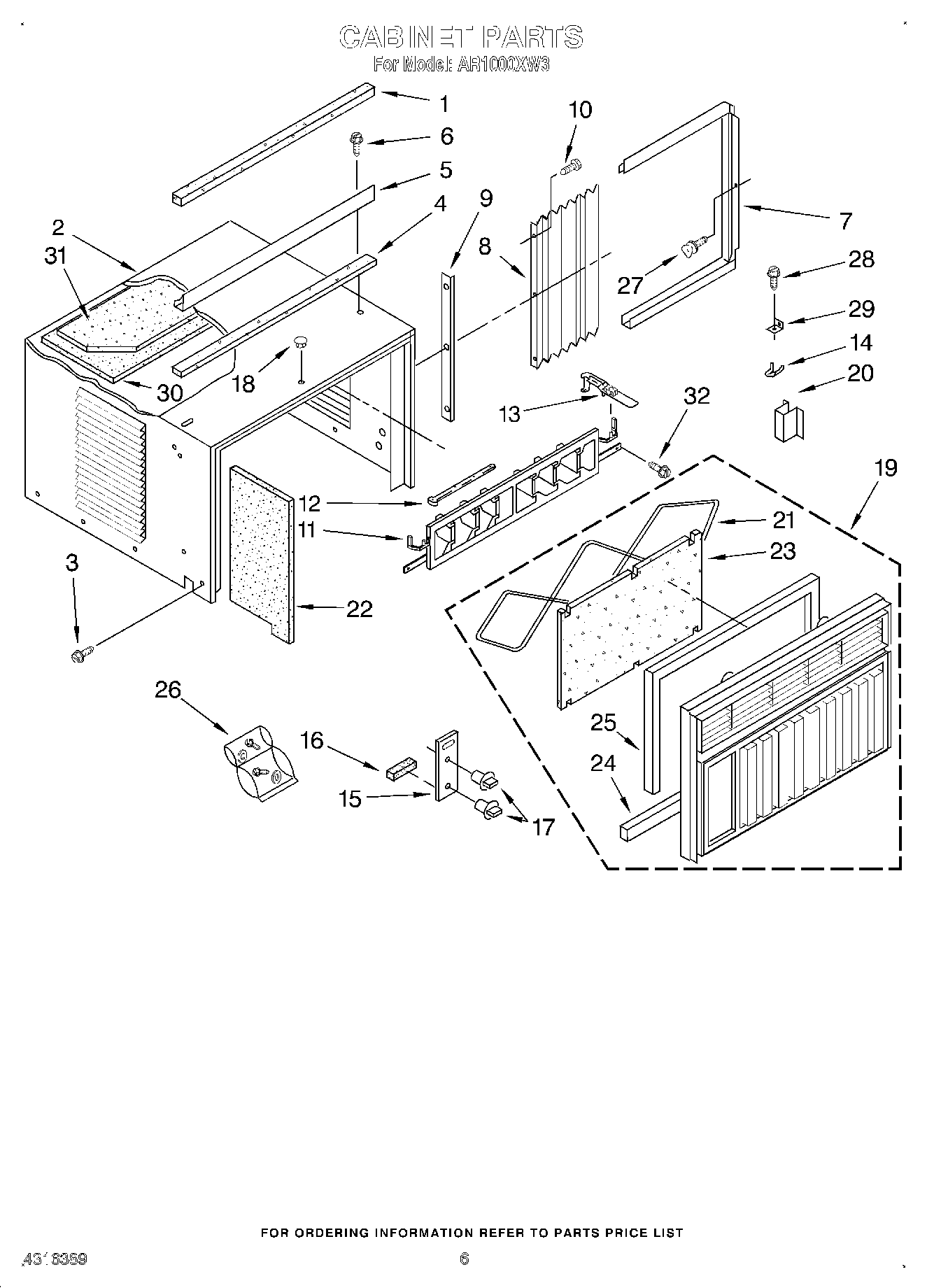

AR1000XW3 04 – CABINET

Products

Position	Product
1	Gasket, Meeting Rail
2	Cabinet
3	WP489069 Whirlpool Compactor Screw
4	Strip, Seal
5	Channel, Top Mounting
6	WP308685 Whirlpool Microwave Screw
7	Housing, Curtain (R.S.)
7	Housing, Curtain L.S.
8	Curtain (2)
9	Retainer, Curtain
10	Screw, 8-18 x 3/8
11	Louver, Vertical
12	Link, Vertical Louver (2)
13	Handle, Vertical Louver (2)
14	Spring, Detent (2)
15	Plate, Escutcheon
16	Spacer, Escutcheon Plate (3)
17	Knob, Control (2)
18	Cover, Hole
19	Front, Cabinet
20	Clip, Vertical Louver
21	Retainer, Filter
22	Insul. Cabinet (Left Side)
22	Insul. Cabinet (Right, Side)
23	Filter
24	Seal, Front
25	Seal, Top & Sides
26	Bag, Accessory
27	Thumbscrew (2)
28	Screw, Wood 8-15 x .750
29	Bracket
30	Insul. Cabinet Top
31	Insul. Cabinet
32	Screw 8-18 x .295
