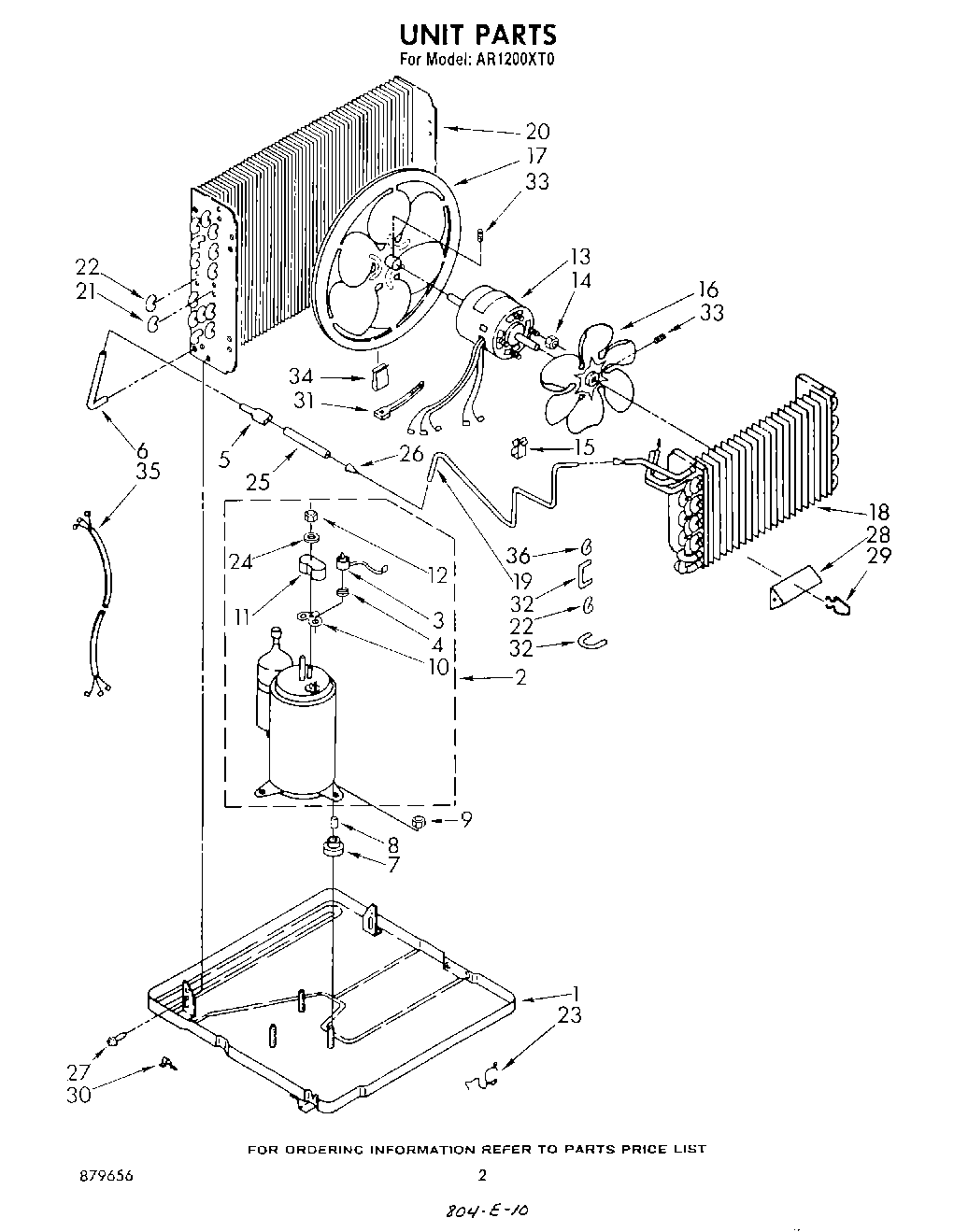

AR1200XT0 02 – UNIT

Products

Position	Product
	Sheet, Tech
	Guide, Operation
	List, Repair Parts
	Installation, Instructions
	Guide, Energy
1	Base
2	Compressor
3	Overload
4	Spring, Overload
5	Tube, Flow Divider
6	Tube, Connecting
7	WP950021 Whirlpool Grommet
8	Sleeve (3)
9	Locknut (3)
10	WP950035 Whirlpool Cover Gasket
11	WP950036 Whirlpool Cover Assembly
12	WP950027 Whirlpool Mounting Nut
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
15	Clamp, Wiring
16	Blade, Fan (Evaporator)
17	Blade, Condenser Fan
18	Evaporator
19	Tube, Restrictor (2) (Length 40.0“)
20	Condenser
21	Bend, Return Condenser (10)
22	Bend, Return Condenser (4)
23	Clip, Mtg. (2) (Base to Front)
24	Gasket, Nut
25	Tube & Strainer (Includes Item 23)
26	Strainer
27	WP489069 Whirlpool Compactor Screw
27	Screw, Repair
28	Anticipator, Temperature
29	Clip, Anticipator
30	Clamp, Restrictor Tube
31	WPW10339879 Whirlpool Wire Tie
32	Tube, Riser (2)
33	Setscrew, 5/16 x 1/4
34	Clip, Fan Balancing
35	Harness, Wiring
36	Order No. 18
