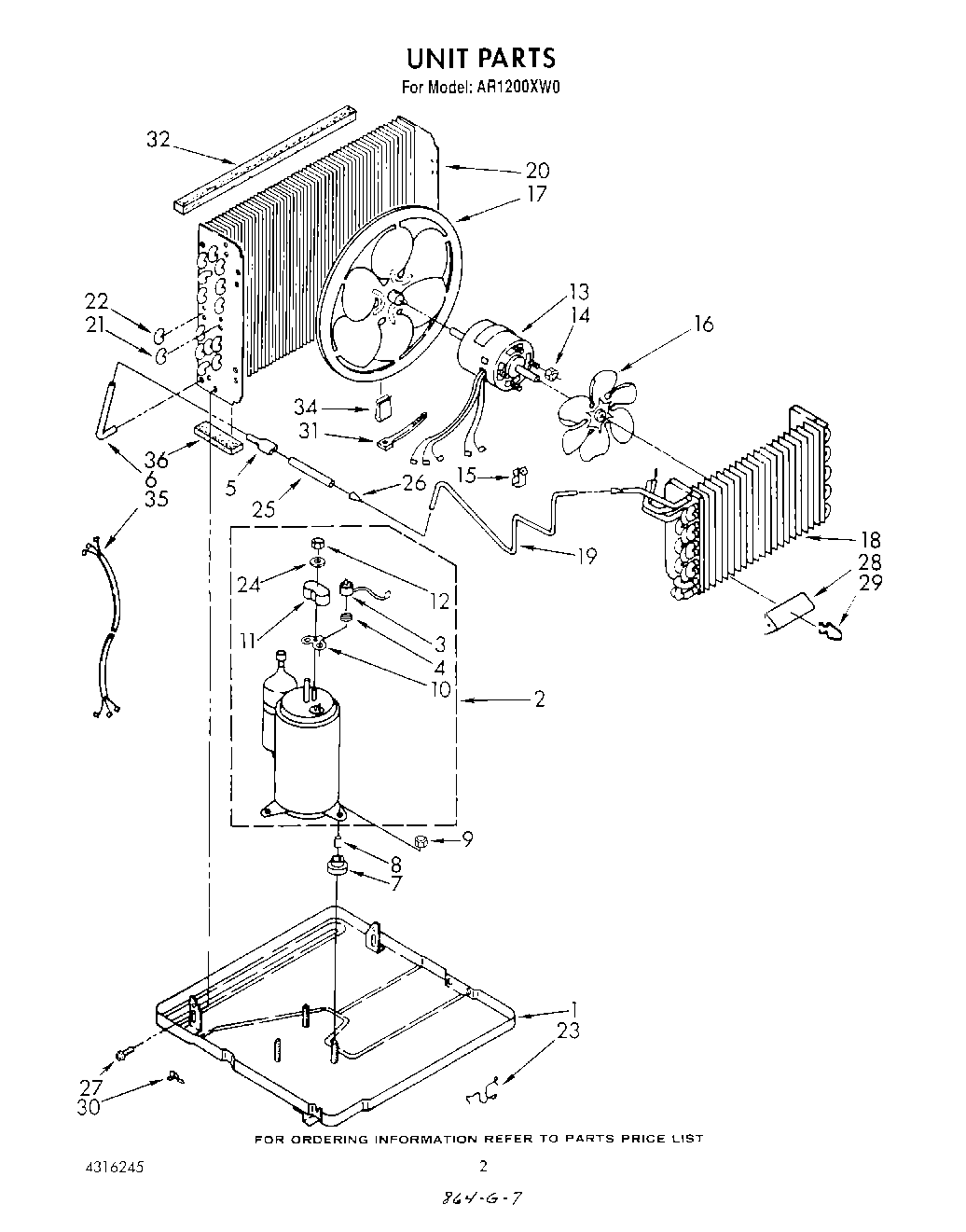

AR1200XW0 02 – UNIT

Products

Position	Product
	Wiring Diagram
	Installation, Instructions
	Guide, Use And Care
	List, Repair Parts
	Sheet, Tech
1	Base
2	Compressor
3	Overload (Production)
4	Spring, Overload
5	Tube, Flow Divider
6	Tube, Connecting
7	WP950021 Whirlpool Grommet
8	Sleeve (3)
9	Locknut (3)
10	WP950035 Whirlpool Cover Gasket
11	WP950036 Whirlpool Cover Assembly
12	Gasket, Nut
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
15	Clamp, Wiring
16	Blade, Fan (Evaporator)
17	Blade, Condenser Fan
18	Evaporator
19	Tube, Restrictor (2) (Length 40.0“)
20	Condenser
21	Bend, Return Condenser (10)
22	Bend, Return Condenser (4)
23	Clip, Mtg. (2) (Base to Front)
24	WP950027 Whirlpool Mounting Nut
25	Tube & Strainer (Includes Item 23)
26	Strainer
27	Screw, Repair
27	WP489069 Whirlpool Compactor Screw
28	Anticipator, Temperature
29	Clip, Anticipator
30	Clamp, Restrictor Tube
31	WPW10339879 Whirlpool Wire Tie
32	Seal, Condenser Top
34	Clip, Fan Balancing
35	Harness, Wiring
36	WP854334 Whirlpool Air Conditioner Sealing Strip
