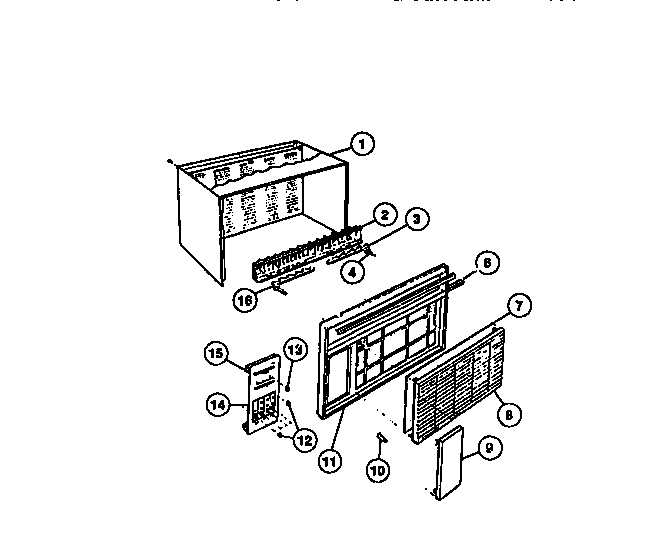

AR12ME8N1 02 – CABINET FRONT & WRAPPER

AR12ME8N1 02 – CABINET FRONT & WRAPPER

Written by

in

AR12ME8N1 02 – CABINET FRONT & WRAPPER

Products

PositionProduct
1WCI 5303207184
2VERT. LOUVER & LINK ASSY.
3LINK – VERT LOUVER RH
4WCI 5303001844
4SCREW-FRONT
6WCI 5308014101
7FILTER, FRAMED
8PANEL – FRONT
9WCI 5308016199
10CLIP-FRONT TO BASE
11WCI 5308017324
12WCI 5308016116
13WCI 5303002189
14WCI 5308017339
15WCI 5303001984
16SEAL-DIAL PLATE
16LINK VERTICAL LOUVER LH
16WCI 5308017294
