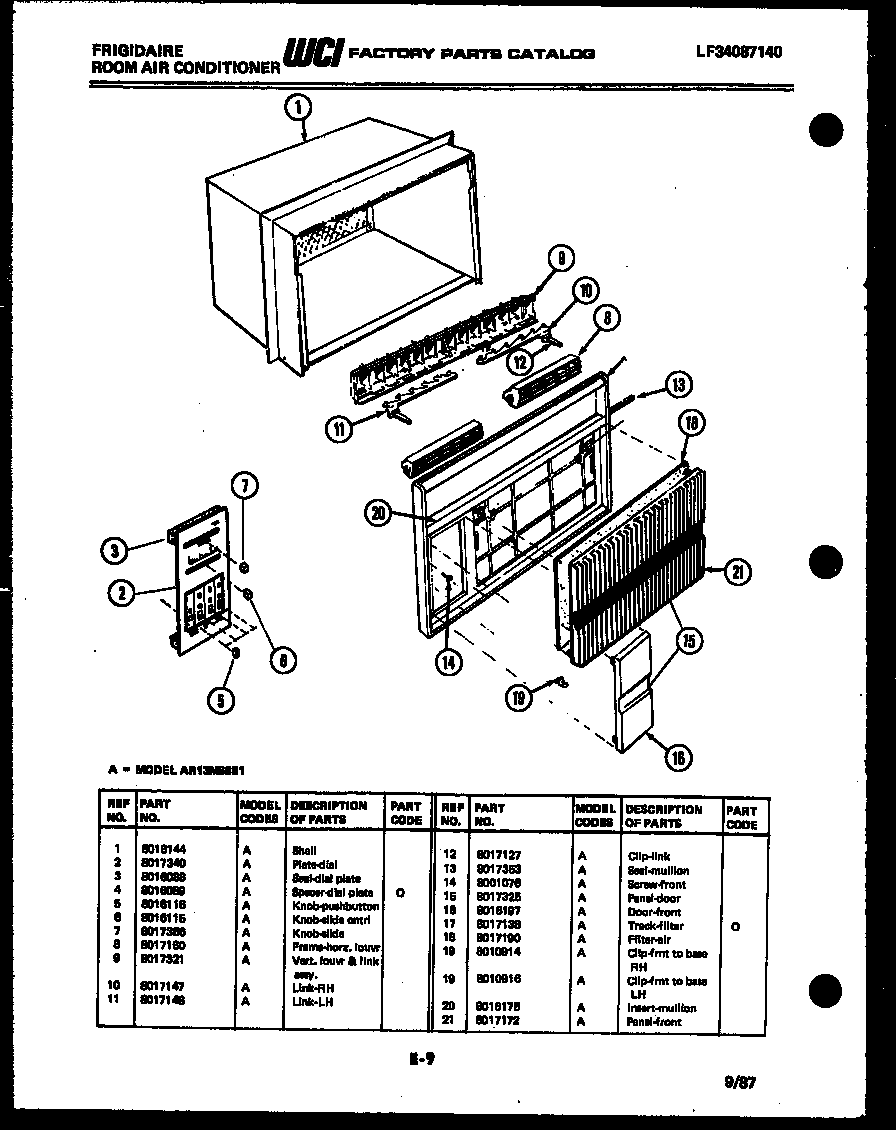

AR13MS8E1 02 – CABINET PARTS – Aparts

AR13MS8E1 02 – CABINET PARTS

Products

Position	Product
1	WCI 8016144
2	ESCUTCHEON
3	SEAL-ESCUTCHEON
4	SEAL-SPACER (NON-ILLUSTRATED)
5	WCI 8016116
6	KNOB-SLIDE CONTROL
7	WCI 8017356
8	FRAME-HORIZONTAL LOUVER
9	FRM & LOUVER ASSY
10	LINK-RH
11	KNOB-SLIDE
12	CLIP-LINK DETENT
13	WCI 8017353
14	SCREW-FRONT
15	PANEL & DOOR ASSY
16	DOOR
17	TRACK - FILTER
18	FILTER-AIR FRAMED
19	CLIP-FRT TO BASE LH
19	CLIP-FRONT TO BASE
20	WCI 8016175
21	WCI 8017172
