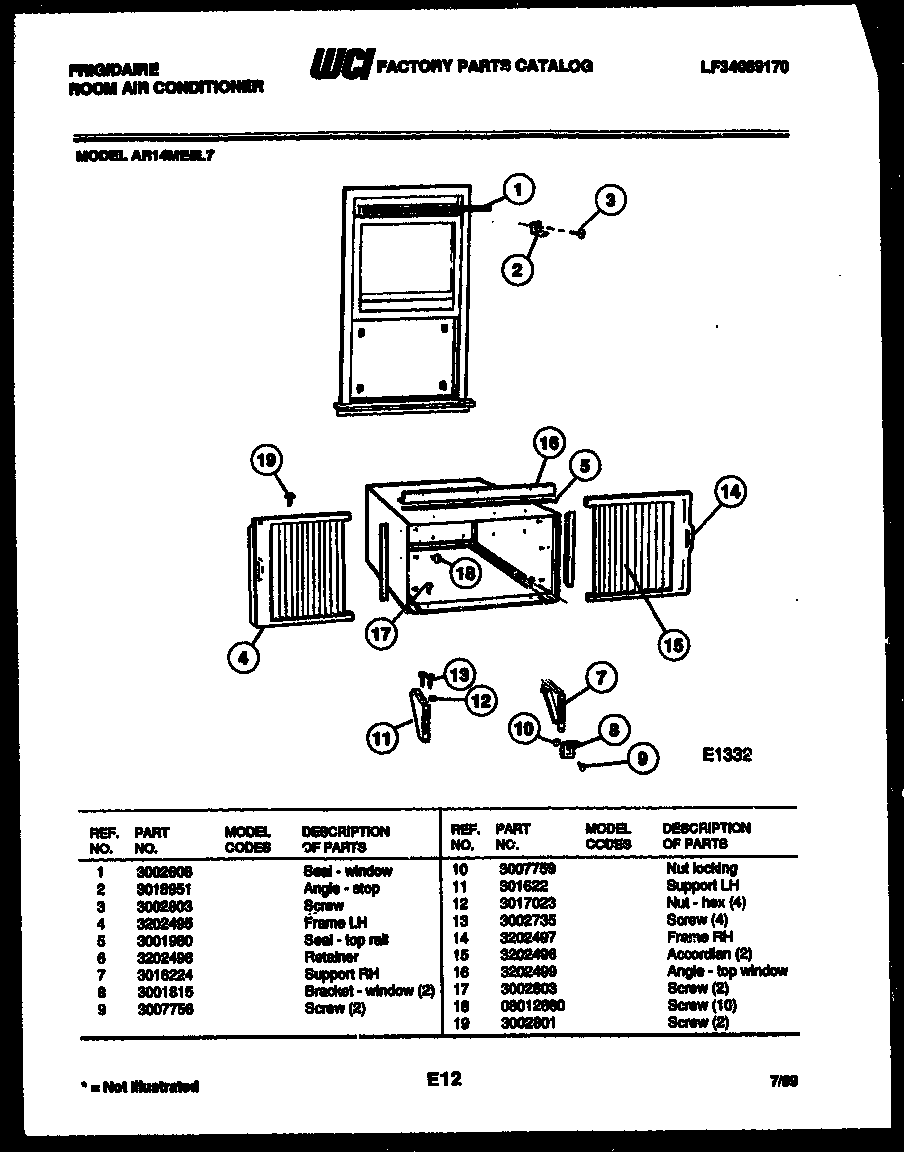

AR14ME5L7 06 – WINDOW MOUNTING PARTS – Aparts

AR14ME5L7 06 – WINDOW MOUNTING PARTS

Products

Position	Product
1	SEAL - WINDOW
2	WCI 3018951
4	WCI 3202495
5	WCI 3001980
6	WCI 3202498
7	WCI 3016224
8	BRACKET - SUPPORT
9	SCREW - SILL SUPT
10	NUT - BRACKET
11	WCI 301622
12	316205500 Frigidaire Oven Nut
13	WCI 3002735
14	WCI 3202497
15	ACCORDIAN (2)
16	ANGLE - TOP WINDOW
17	SCREW-WOOD
18	WCI 08012680
19	WCI 3002801
