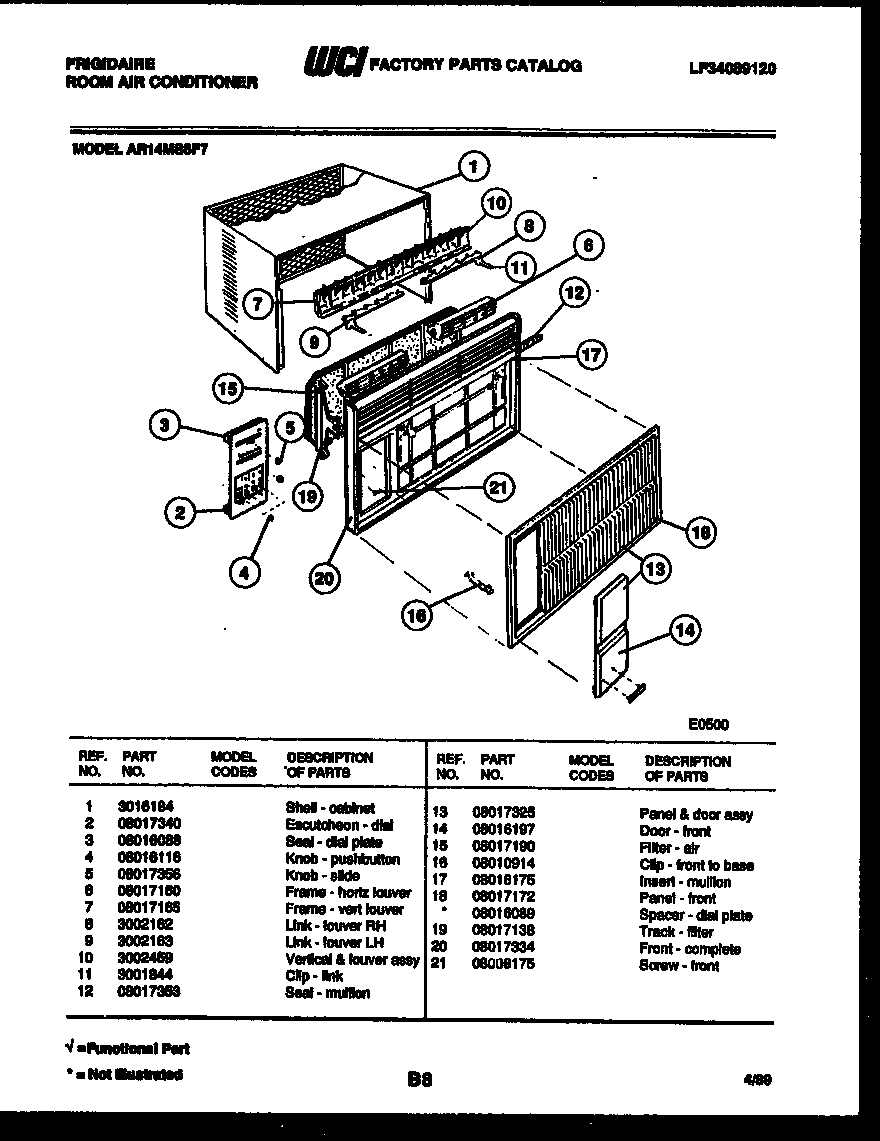

AR14MS8F7 02 – CABINET PARTS

AR14MS8F7 02 – CABINET PARTS

Written by

in

AR14MS8F7 02 – CABINET PARTS

Products

PositionProduct
1WRAPPER
2WCI 08017340
3SEAL – DIAL PLATE
4WCI 08016116
5WCI 08017356
6WCI 08017160
7WCI 08017165
8LINK-VERT LOUVER RH
9LINK-VERT LOUVER LH
10FRAME-VERT & LINK ASSY
11CLIP-DETENT
12WCI 08017353
13WCI 08017325
14WCI 08016197
15WCI 08017190
16CLIP-FRONT TO BASE
17WCI 08016175
18WCI 08017172
18ASEAL-SPACER DIAL
19WCI 08017138
20WCI 08017334
21SCREW-FRONT
