AR16NS8E1 02 – CABINET PARTS

Products

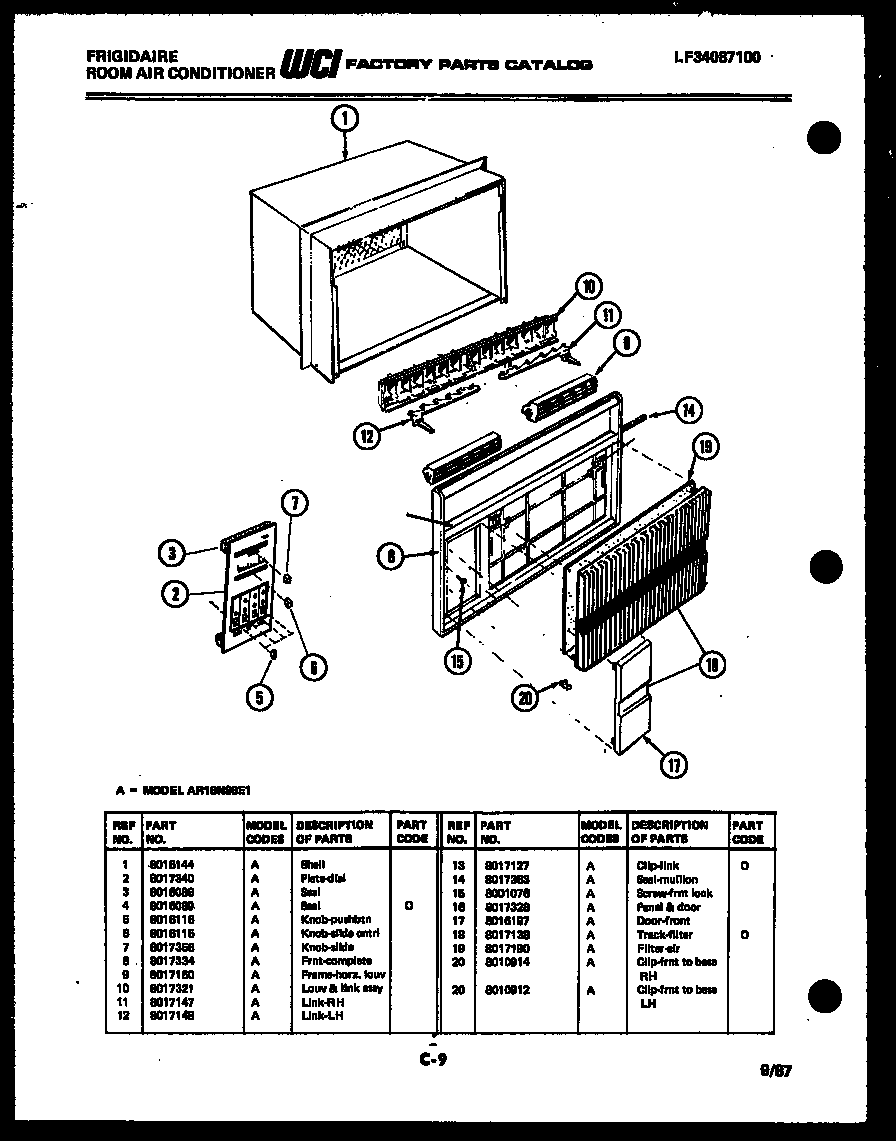

Position	Product
1	WCI 8016144
2	ESCUTCHEON
3	SEAL-ESCUTCHEON
4	SEAL-SPACER (NON-ILLUSTRATED)
5	WCI 8016116
6	KNOB-SLIDE CONTROL
7	WCI 8017356
8	FRONT-LESS PANEL
9	FRAME-HORIZONTAL LOUVER
10	FRM & LOUVER ASSY
11	LINK-RH
12	LINK-LH
13	CLIP-LINK DETENT
14	WCI 8017353
15	SCREW-FRONT
16	PANEL & DOOR
17	DOOR
18	TRACK – FILTER
19	FILTER-AIR FRAMED
20	CLIP-FRONT TO BASE
20	WCI 8010912
