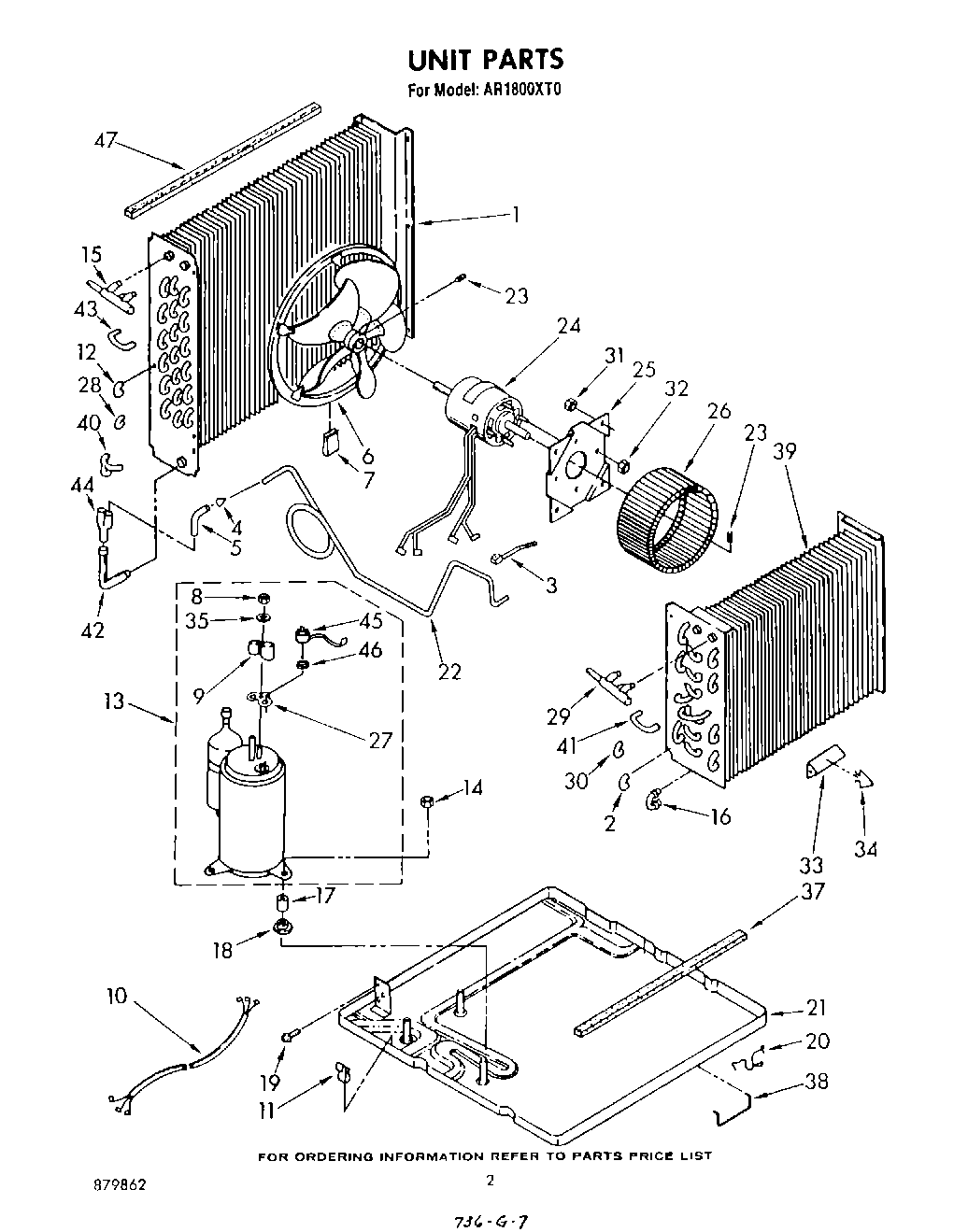

| 1 | Condenser |
| 2 | Bend, Return Evaporator (11) |
| 3 | WPW10339879 Whirlpool Wire Tie |
| 4 | Strainer |
| 5 | Tube & Strainer (Includes Item 23) |
| 6 | Blade, Fan |
| 7 | Clip, Fan Balancing |
| 8 | WP950027 Whirlpool Mounting Nut |
| 9 | WP950036 Whirlpool Cover Assembly |
| 10 | Harness, Wiring |
| 11 | Clamp, Restrictor Tube |
| 12 | Bend, Return Condenser (4) |
| 13 | Compressor |
| 14 | Locknut (3) |
| 16 | WP855199 Whirlpool Bend Return |
| 17 | Sleeve (3) |
| 18 | WP950021 Whirlpool Grommet |
| 19 | WP488729 Whirlpool Refrigerator Door Screw |
| 20 | Clip, Mtg. (3) |
| 21 | Base |
| 22 | Tube Restrictor (3) (Length 46.0``) |
| 23 | Setscrew, 5/16 x 1/4 |
| 24 | Motor, Fan |
| 25 | WPL 998024 |
| 26 | Wheel, Blower |
| 27 | WP950035 Whirlpool Cover Gasket |
| 28 | Bend, Return Condenser (10) |
| 30 | Tube, Manifold |
| 31 | Nut, Hex (4) |
| 32 | WP488130 Whirlpool Air Conditioner Nut |
| 33 | Anticipator |
| 34 | Clip |
| 35 | Gasket, Nut |
| 37 | Seal |
| 38 | WPL 647971 |
| 39 | Evaporator |
| 40 | Bend, 3-Way |
| 41 | Bend, Return |
| 42 | Tube, Connecting |
| 43 | Tube, Riser (2) |
| 44 | Tube, Flow Divider |
| 45 | Spring, Overload |
| 46 | WP1161170 Whirlpool Air Conditioner Overload |
| 47 | Seal, Condenser Fin |
