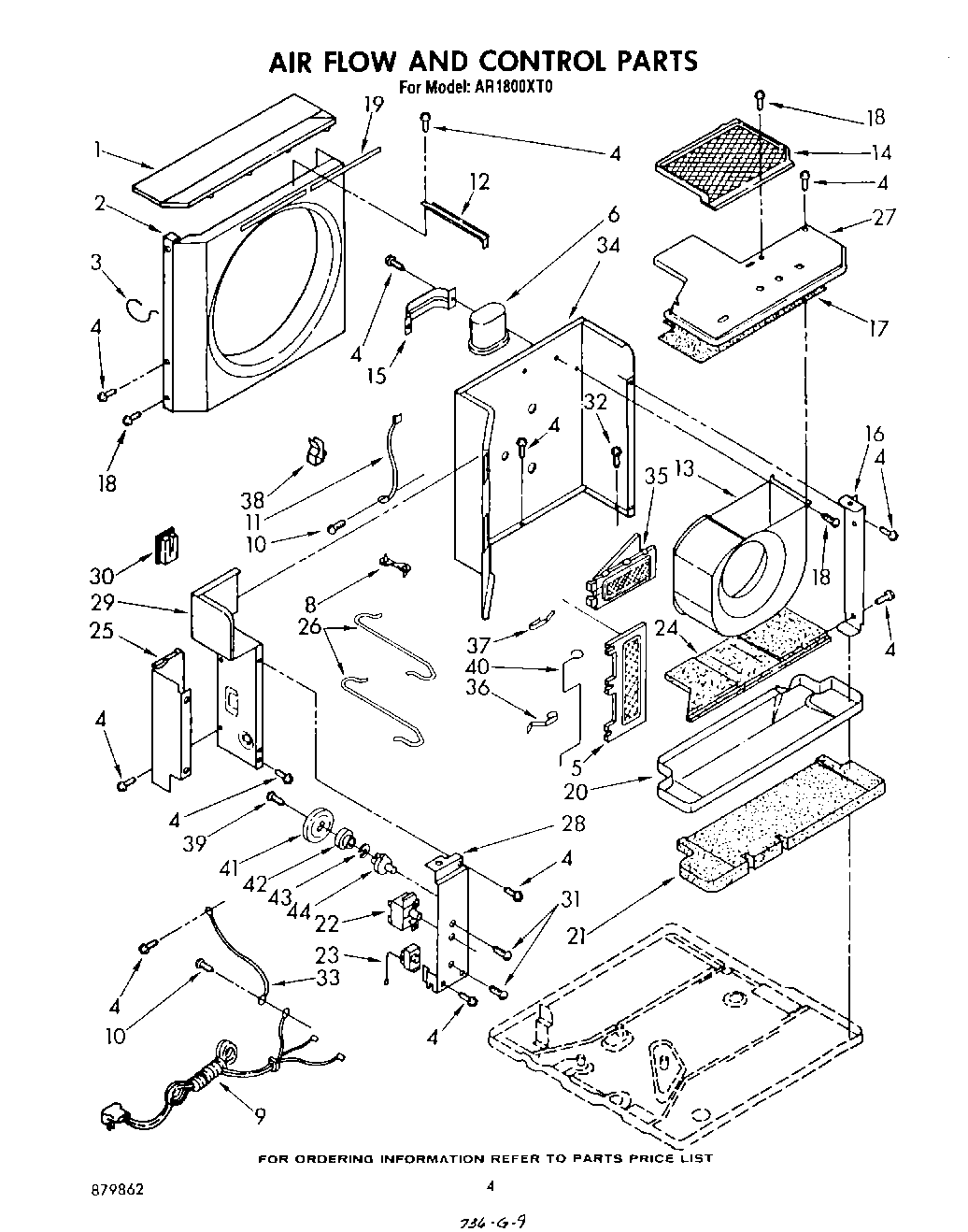

AR1800XT0 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Cover, Condenser Shroud
2	Shroud, Condenser
3	Clip, Shroud (2)
4	WP489069 Whirlpool Compactor Screw
4	WP308685 Whirlpool Microwave Screw
5	Door, Fresh Air
6	Capacitor, Running
8	Clamp, Cable
9	Cable
10	WPW10141604 Whirlpool Screw
11	Wire, Ground (2)
12	support, unit (2)
13	Housing, Blower Wheel
14	Guard, Evaporator Impeller
15	Bracket, Capacitor
16	Plate, Adapter
17	Insulation, Evaporator Cover
18	WP488729 Whirlpool Refrigerator Door Screw
19	WP854334 Whirlpool Air Conditioner Sealing Strip
19	seal, strip (shroud) (side)
20	Pan, Condensate
21	Insulation, Pan
22	Switch, Rotary (On – Off)
23	Switch, Thermostat
24	Insulation, Base
25	Cover, Controls
27	Cover, Evaporator
28	Panel, Control
29	Extension Divding Wall
30	Seal, Tube
31	Screw, 6-32 x .175
32	Screw, 8 x 3/8
33	Ground Wire
34	Wall, Dividing
35	Door, Exhaust
36	Spring, Door
37	Spring, Door
38	Clamp, Cable
39	WP98165 Whirlpool Screw
40	Actuator, Door
41	Cam, Exhaust
42	Bushing, Shaft
43	Washer
44	Shaft, Control
