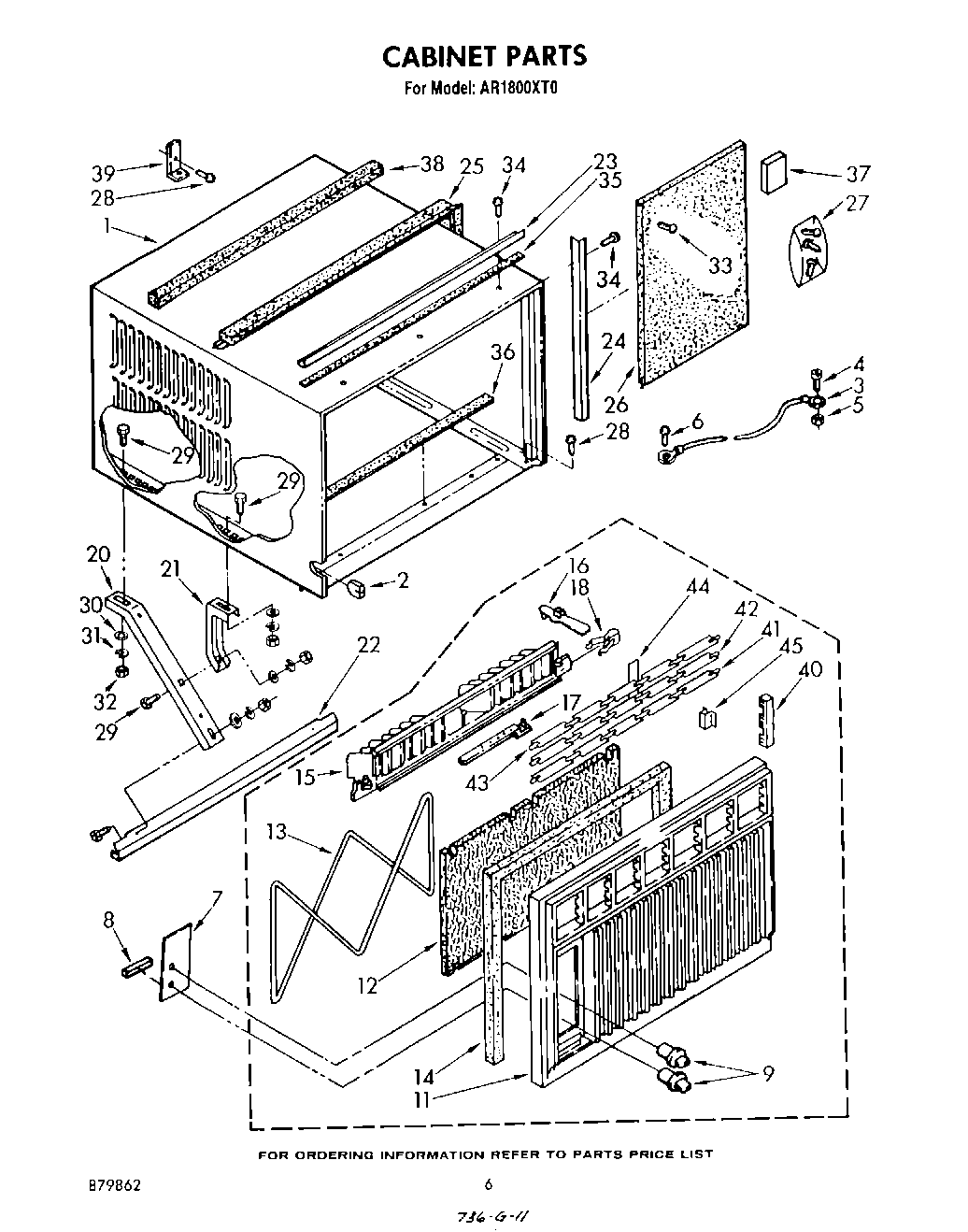

AR1800XT0 04 – CABINET

Products

Position	Product
1	Cabinet
2	Grommet, Appliance Cable
3	Wire, Ground
4	Screw, 8 x 3/8
5	WP486255 Whirlpool Air Conditioner Nut
6	Screw, 8 x 3/8
7	Plate, Escutcheon
8	Spacer, Escutcheon Plate (2)
9	Knob, Control (3)
11	WPL 953018
12	Filter, Air
13	Retainer, Filter
14	Seal, Front (Top & Sides)
14	Seal, Front (Bottom)
15	WPL 953064
16	Handle, Louver (2)
17	Link, Louver (2)
18	Spring, Louver
20	Support, Cabinet (2)
21	Support, Retainer (2)
22	Bracket, Support
23	Angle, Top Mounting
24	Angle (2)
25	Gasket, Sash
26	Board, Filler
27	Bag, Accessory
28	Screw (Window Lock Bracket)
29	Bolt, 1/4 x 3/4 (6)
30	WP120393 Whirlpool Washer Assembly
31	Lockwasher (6)
32	Nut, Hex (6)
33	WP965173 Whirlpool Dishwasher Screw
34	WP308685 Whirlpool Microwave Screw
35	Strip, Seal
36	Seal, Bottom
37	Spacer, Block (4)
38	Gasket, Meeting Rail
39	Bracket
40	Rack, Louver (2)
41	louver, horizontal (notched)
42	louver, horizontal (handle)
43	Louver, Horizontal (4)
44	Retainer (4)
45	Front, Cabinet (Complete Assembly)
45	Clip, Retainer (4)
