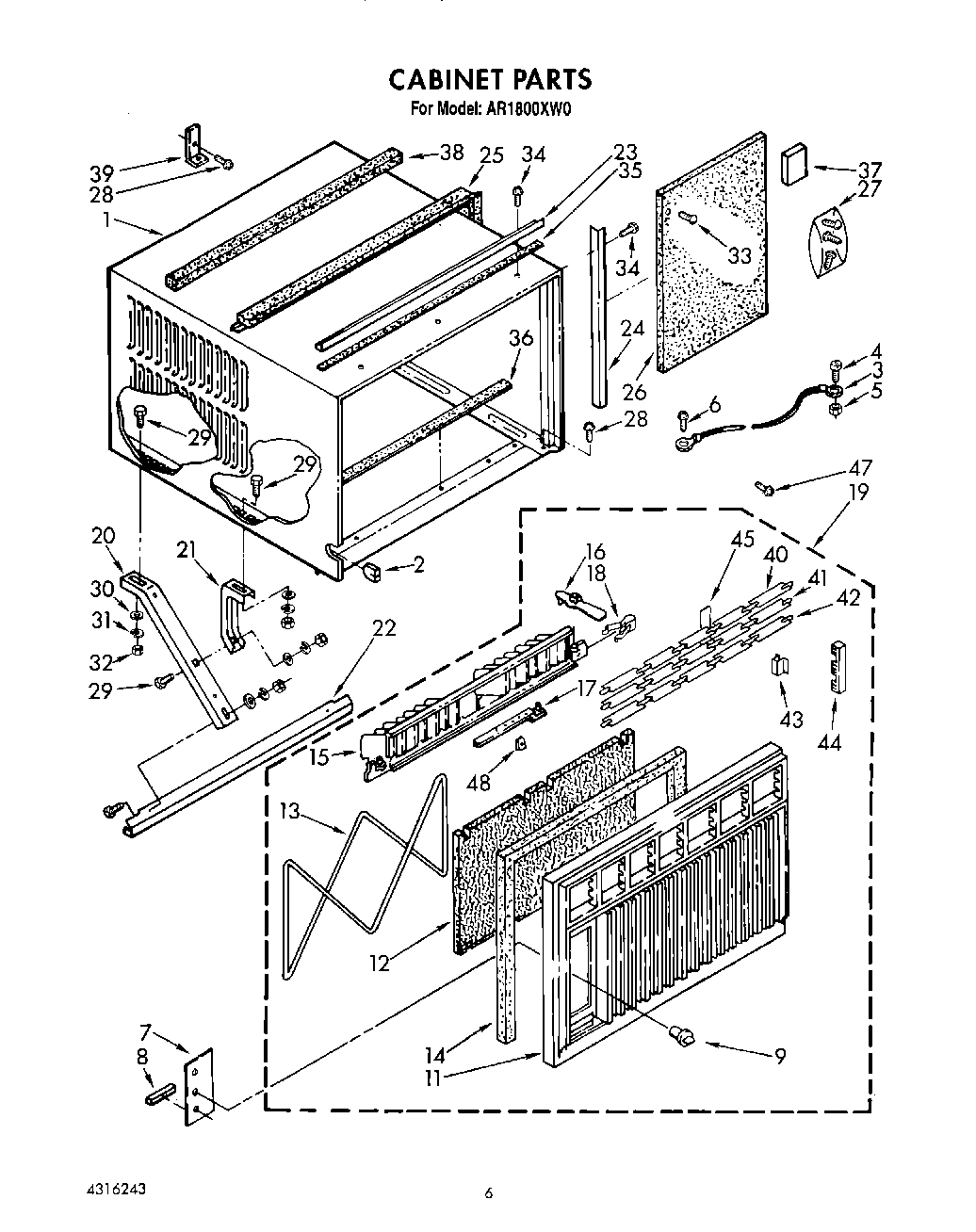

AR1800XW0 04 – CABINET

Products

PositionProduct
1Insulation Cabinet
1Cabinet
2Grommet, Appliance Cable
3Wire, Ground
4Screw, 8 x 3/8
5WP486255 Whirlpool Air Conditioner Nut
6Screw, 8 x 3/8
7Plate, Escutcheon
8Spacer, Escutcheon Plate (2)
9Knob, Control (3)
11WPL 953018
12Filter, Air
13Retainer, Filter
14Seal, Front (Top & Sides)
14Seal, Front (Bottom)
15WPL 953064
16Handle, Louver (2)
17Link, Louver (2)
18Detent Spring (2)
19Front, Complete
20Support, Cabinet (2)
21Support, Retainer (2)
22Bracket, Support
23Angle, Top Mounting
24Angle (2)
25Gasket, Sash
26Board, Filler
27Bag, Accessory
28Screw (Window Lock Bracket)
29Bolt, 1/4 x 3/4 (6)
30WP120393 Whirlpool Washer Assembly
31Lockwasher (6)
32Nut, Hex (6)
33WP965173 Whirlpool Dishwasher Screw
34WP308685 Whirlpool Microwave Screw
35Strip, Seal
36Seal, Bottom
37Spacer, Block (4)
38Gasket, Meeting Rail
39Bracket
40Louver, Horizontal (4)
41louver, horizontal (notched)
42louver, horizontal (handle)
43Clip, Retainer (4)
44Rack, Louver (2)
45Retainer (4)
47Screw (2)
48Clip, Cabinet Front (2)
