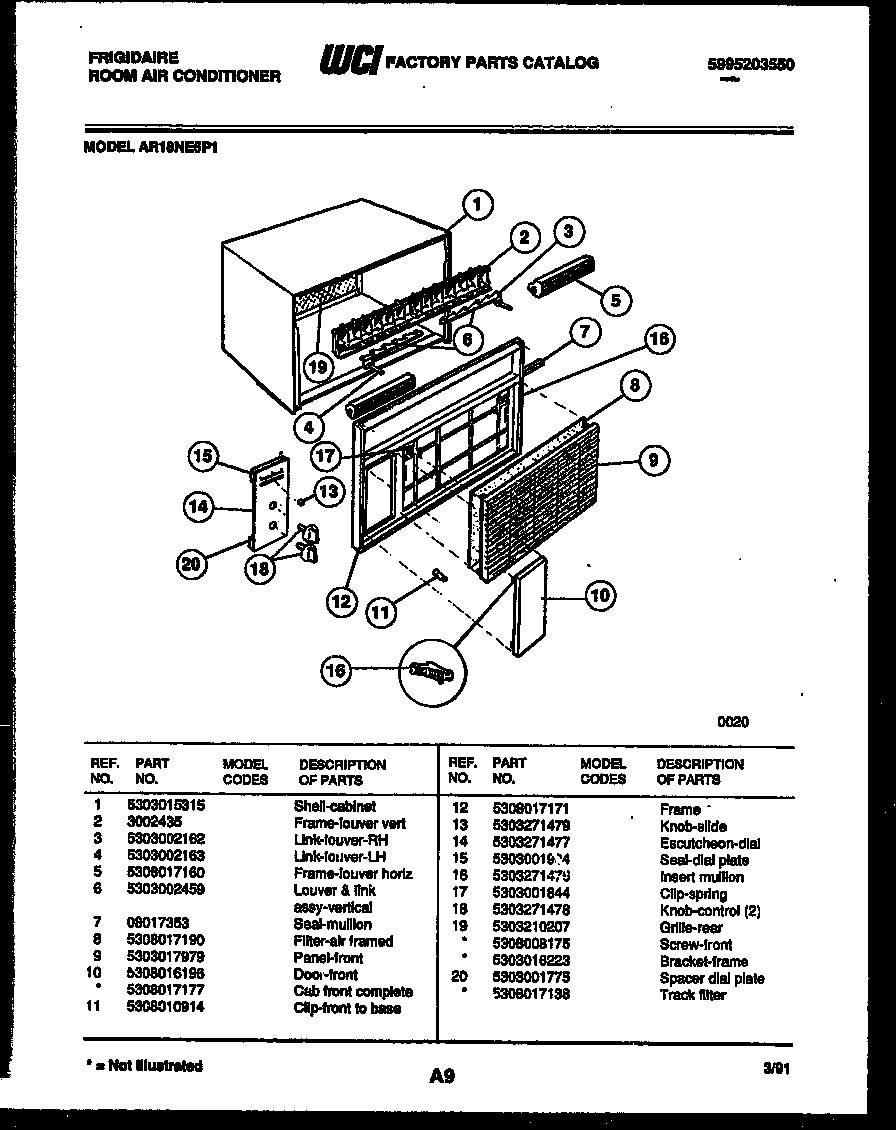

AR18NE5P1 02 – CABINET PARTS

AR18NE5P1 02 – CABINET PARTS

Written by

in

AR18NE5P1 02 – CABINET PARTS

Products

PositionProduct
*42325WCI 5308017138
1SHELL-CABINET
2WCI 3002435
3LINK-VERT LOUVER RH
4LINK-VERT LOUVER LH
5FRAME-HORIZ. LOUVER
6WCI 5303002459
7WCI 08017353
8WCI 5308017190
9WCI 5303017979
10WCI 5308016196
10AWCI 5308017177
11CLIP-FRONT TO BASE
12WCI 5308017171
13WCI 5303271479
14DIAL PLATE
15WCI 5303001984
16WCI 5303271476
17WCI 5303001844
18WCI 5303271478
19ASCREW-FRONT
19WCI 5303210207
19BWCI 5303016223
20WCI 5303001775
