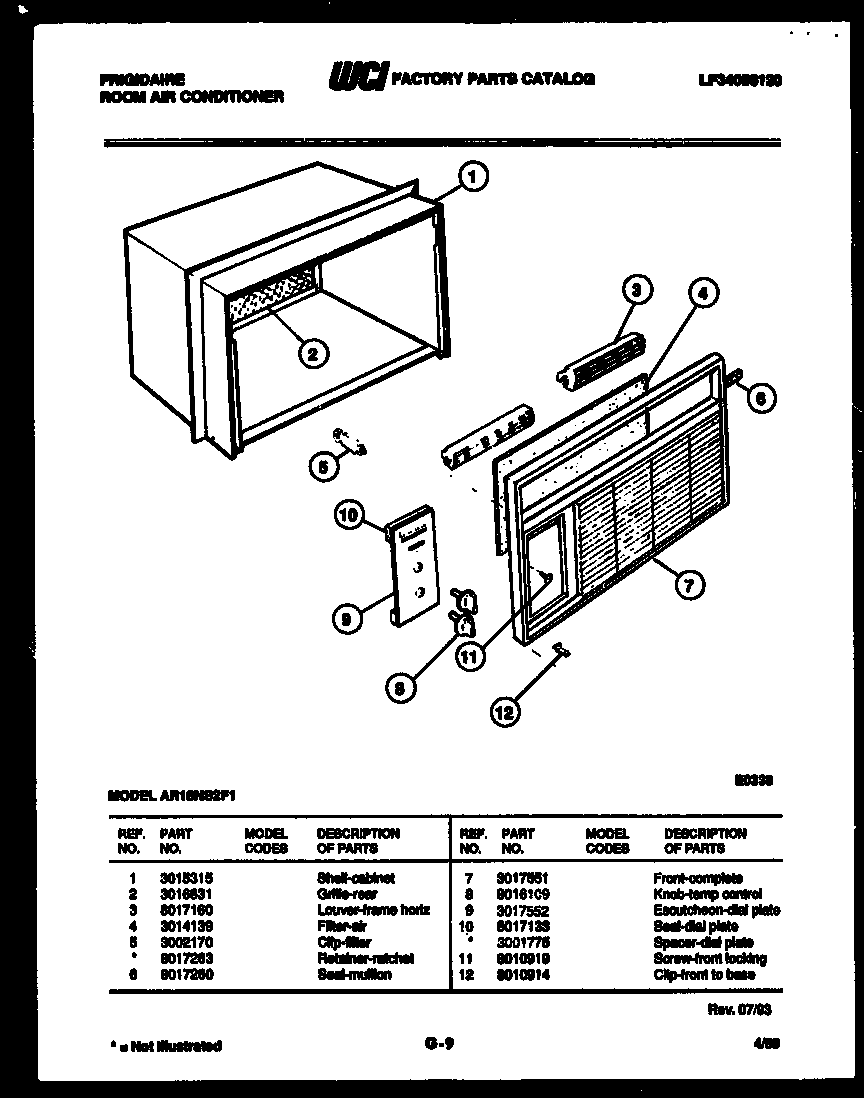

AR18NS2F1 02 – CABINET PARTS

Written by

Products

Position	Product
1	SHELL-CABINET
2	GRILL – REAR SHELL (NON-ILLUSTRATED)
3	FRAME-HORIZONTAL LOUVER
4	FILTER-AIR
5	WCI 3002170
5A	WCI 8017263
6	WCI 8017260
7	WCI 3017551
8	WCI 8016109
9	WCI 3017552
10	SEAL-DIAL PLATE
10A	SPACER-DIAL PLATE, ( NON-ILLUSTRATED)
11	SCREW-FRONT LOCKING
12	CLIP-FRONT TO BASE
