AR18NS8F1 02 – CABINET PARTS

AR18NS8F1 02 – CABINET PARTS

Written by

in

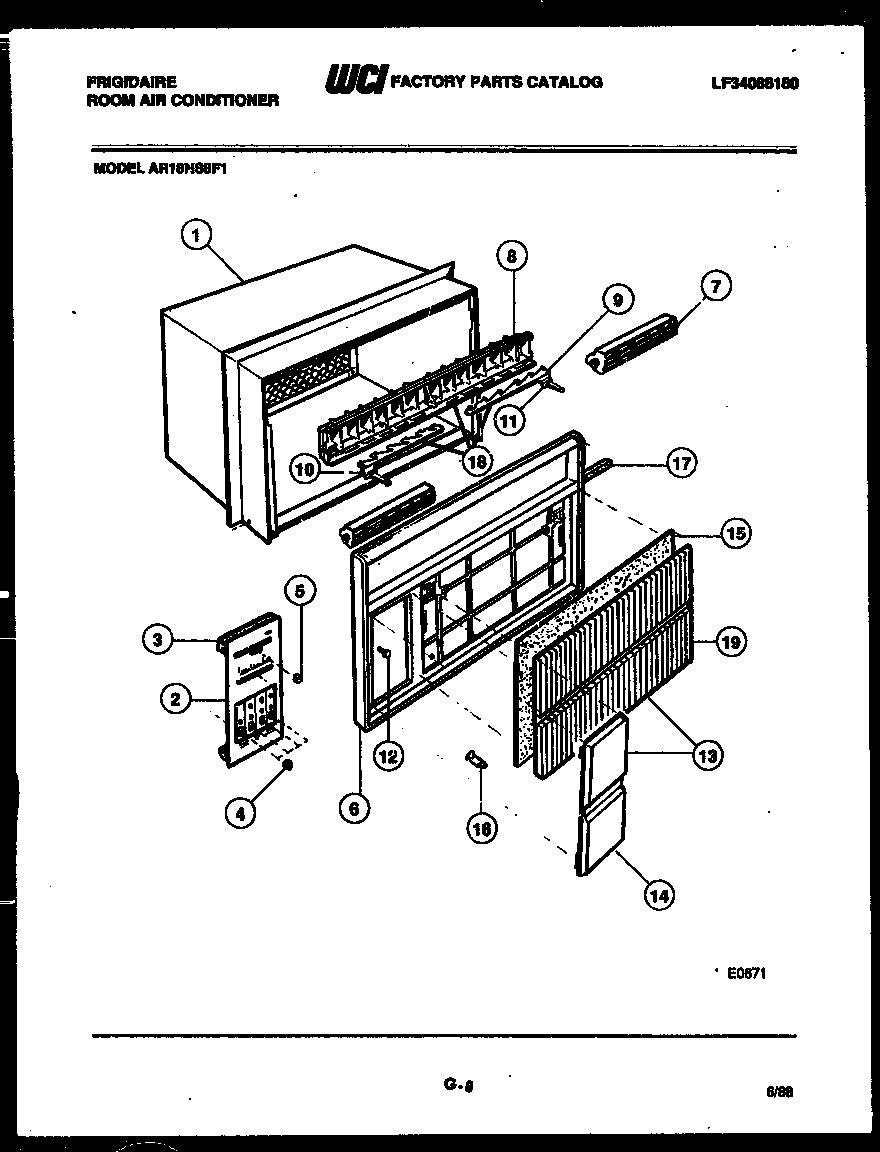

AR18NS8F1 02 – CABINET PARTS

Products

PositionProduct
*13581PLATE-NAME
*13581WCI 8016175
*13581SEAL-ESCUTCHEON
*13581TRACK – FILTER
1WRAPPER
2ESCUTCHEON
3SEAL-SPACER (NON-ILLUSTRATED)
4WCI 8016116
5WCI 3002189
6FRONT-LESS PANEL
7FRAME-HORIZONTAL LOUVER
8FRAME-VERTICAL LOUVER
9LINK-VERT LOUVER RH
10LINK-VERT LOUVER LH
11CLIP-DETENT
12SCREW-FRONT
13PANEL & DOOR ASSY
14DOOR
15FILTER-AIR FRAMED
16CLIP-FRONT TO BASE
17WCI 8017353
18FRAME-VERT & LINK ASSY
