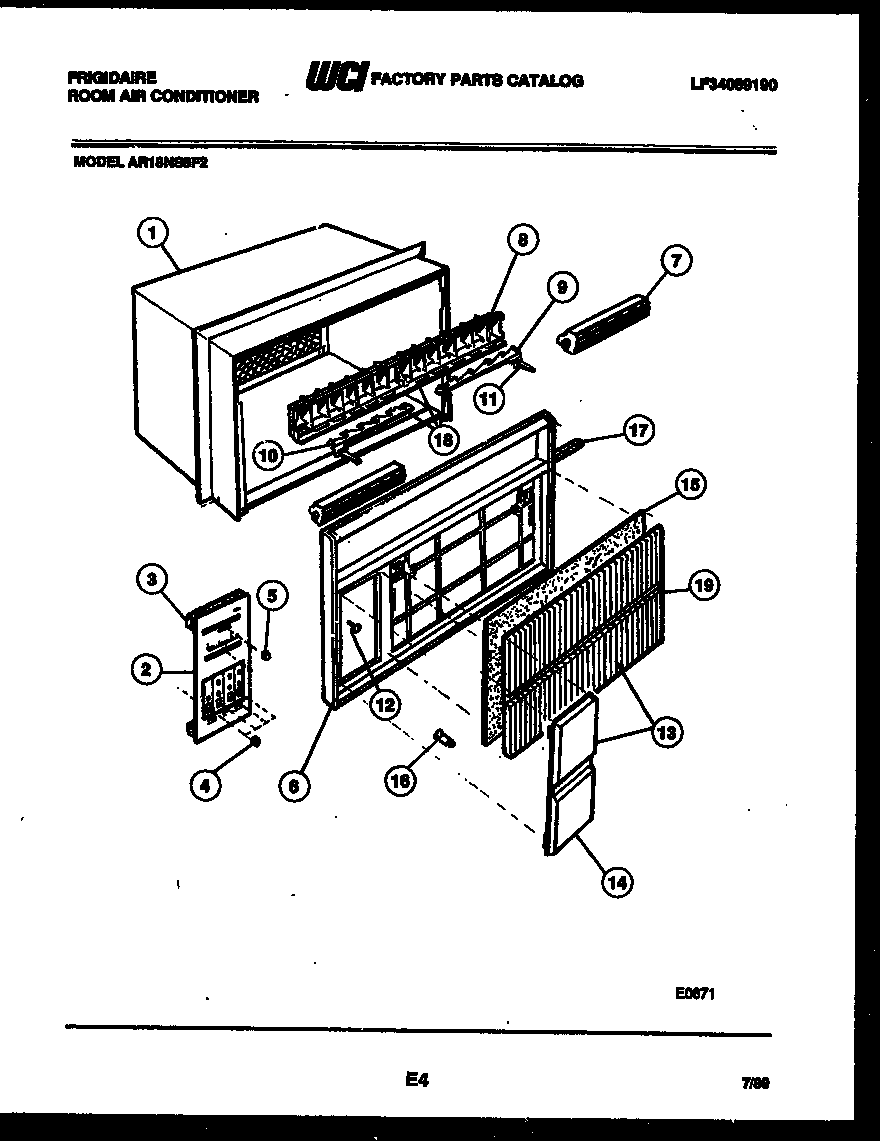

AR18NS8F2 02 – CABINET PARTS

AR18NS8F2 02 – CABINET PARTS

Written by

in

AR18NS8F2 02 – CABINET PARTS

Products

PositionProduct
1WCI 3016221
2WCI 08017340
3SEAL – DIAL PLATE
4WCI 08016116
5WCI 3002189
6WCI 3200419
7WCI 08017160
8WCI 08017165
9LINK-VERT LOUVER RH
10LINK-VERT LOUVER LH
11CLIP-DETENT
12SCREW-FRONT MTG
13WCI 08017325
14WCI 08016197
15WCI 08017190
16CLIP-FRONT TO BASE
17WCI 08017353
18DWCI 08016175
18ASEAL-SPACER DIAL
18CPLATE-NAME
18BWCI 08017138
18FRAME-VERT & LINK ASSY
19WCI 3200420
