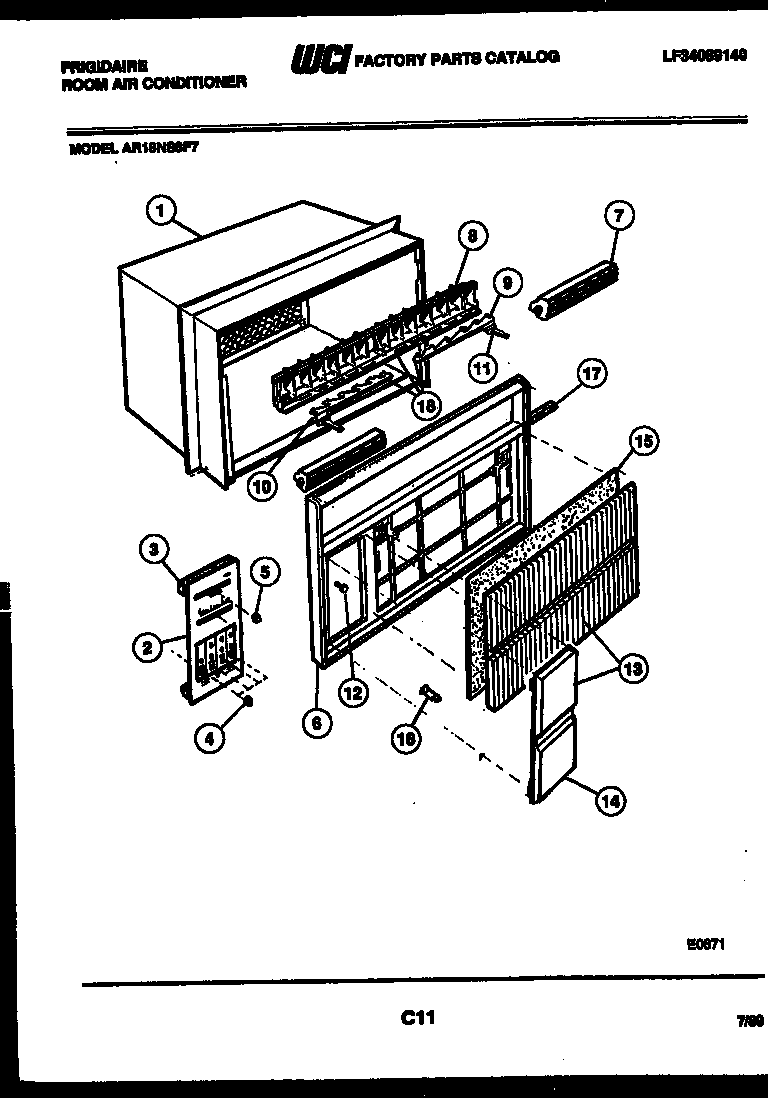

AR18NS8F7 02 – CABINET PARTS

AR18NS8F7 02 – CABINET PARTS

Written by

in

AR18NS8F7 02 – CABINET PARTS

Products

Position	Product
*10137	WCI 08016175
*10136	SEAL – DIAL PLATE
*10137	WCI 08017138
*10137	PLATE-NAME
1	WRAPPER
2	WCI 08017340
3	SEAL-SPACER DIAL
4	WCI 08016116
5	WCI 3002189
6	WCI 3200419
7	WCI 08017160
8	WCI 08017165
9	LINK-VERT LOUVER RH
10	LINK-VERT LOUVER LH
11	CLIP-DETENT
12	SCREW-FRONT MTG
13	WCI 08017325
14	WCI 08016197
15	WCI 08017190
16	CLIP-FRONT TO BASE
17	WCI 08017353
18	FRAME-VERT & LINK ASSY
