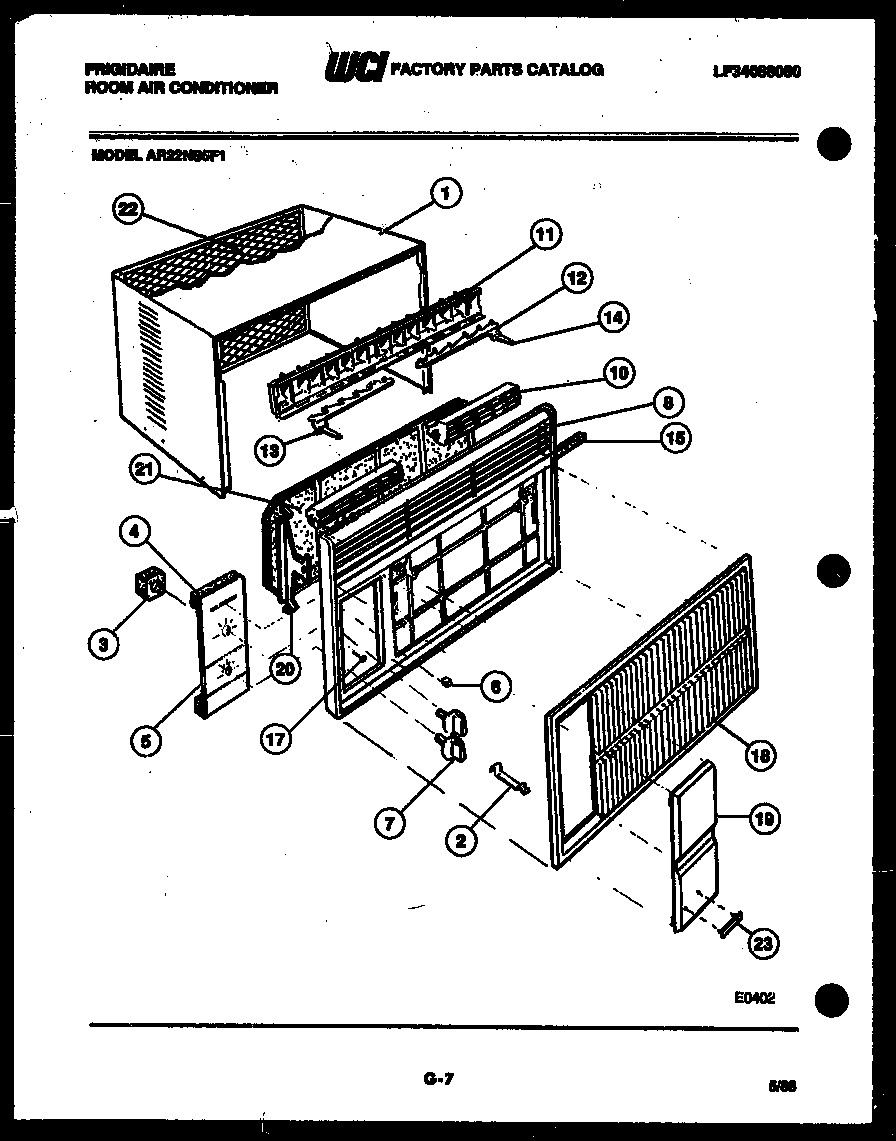

AR22NS5F1 02 – CABINET PARTS

Products

Position	Product
*23604	BRACKET-FRAME FRONT
*23604	FRM & LOUVER ASSY
*23604	PANEL & DOOR ASSEMBLY
1	WRAPPER
2	CLIP-FRONT TO BASE
3	SPACER-DIAL PLATE
4	SEAL-DIAL PLATE
5	WCI 3016762
6	WCI 8017356
7	WCI 8016109
8	WCI 8017188
9	WCI 8017171
10	FRAME-HORIZONTAL LOUVER
11	FRAME-VERTICAL LOUVER
12	LINK-RH
13	LINK-LH
14	CLIP-LINK DETENT
15	WCI 8017353
16	INSERT-MULLION (NON-ILLUSTRATED)
17	SCREW-FRONT
18	WCI 8017172
19	DOOR-FRONT
20	TRACK – FILTER
21	FILTER-AIR FRAMED
22	GRILL – REAR SHELL (NON-ILLUSTRATED)
23	PLATE-NAME
