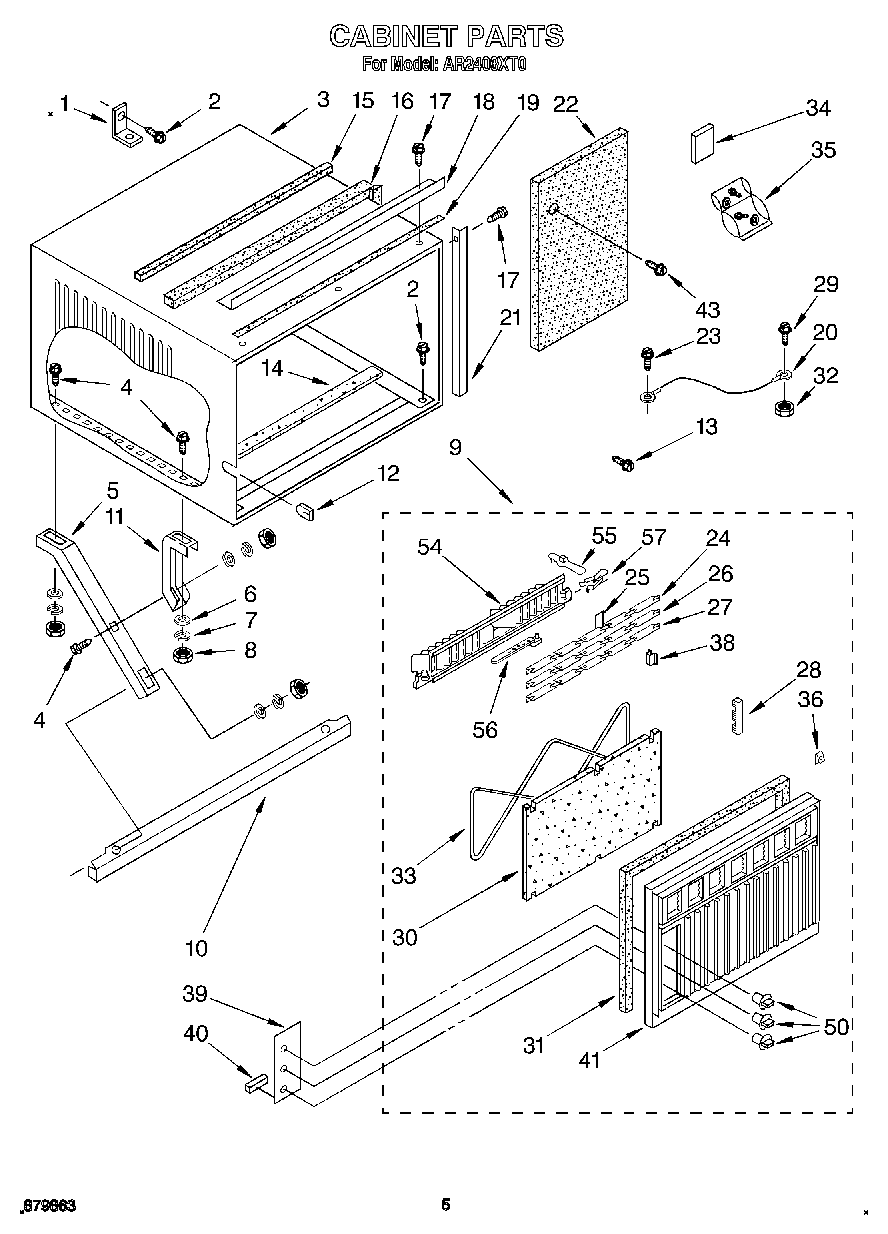

AR2400XT0 03 – CABINET

Products

Position	Product
1	Bracket
2	Screw (Window Lock Bracket)
3	Insulation Cabinet
3	Cabinet
4	Bolt, 1/4 x 3/4 (6)
5	Support, Cabinet (2)
6	WP120393 Whirlpool Washer Assembly
7	Lockwasher (6)
8	Nut, Hex (6)
9	Front, Complete
10	Bracket, Support
11	Support, Retainer (2)
12	Grommet, Appliance Cable
13	Screw (2)
14	Seal, Bottom
15	Gasket, Meeting Rail
16	Gasket, Sash
17	WP308685 Whirlpool Microwave Screw
18	Angle, Top Mounting
19	Strip, Seal
20	Wire, Ground
21	Angle (2)
22	Board, Filler
23	Screw, 8 x 3/8
24	Louver, Horizontal (4)
25	Retainer (4)
26	louver, horizontal (handle)
27	louver, horizontal (notched)
28	Rack, Louver (2)
29	Screw, 8 x 3/8
30	Filter, Air
31	Seal, Front (Top & Sides)
31	Seal, Front (Bottom)
32	WP486255 Whirlpool Air Conditioner Nut
33	Retainer, Filter
34	Spacer, Block (4)
35	Bag, Accessory
36	Clip, Cabinet Front (2)
38	Clip, Retainer (4)
39	Plate, Escutcheon
40	Spacer, Escutcheon Plate (2)
41	WPL 953018
43	WP965173 Whirlpool Dishwasher Screw
50	Knob, Control (3)
54	WPL 953064
55	Handle, Louver (2)
56	Link, Louver (2)
57	Detent Spring (2)
