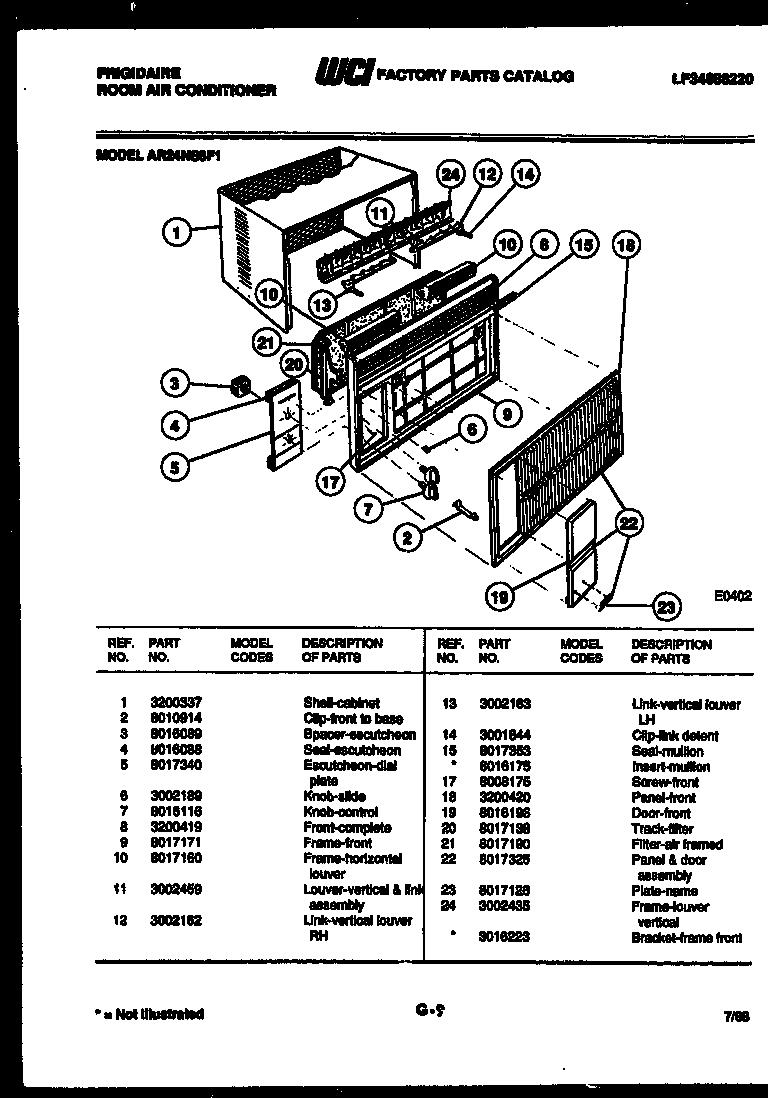

AR24NS8F1 02 – CABINET PARTS

AR24NS8F1 02 – CABINET PARTS

Written by

in

AR24NS8F1 02 – CABINET PARTS

Products

PositionProduct
*17357BRACKET-FRAME FRONT
1SHELL-CABINET
2CLIP-FRONT TO BASE
3SEAL-SPACER (NON-ILLUSTRATED)
4SEAL-ESCUTCHEON
5ESCUTCHEON
6WCI 3002189
7WCI 8016116
8WCI 3200419
9WCI 8017171
10FRAME-HORIZONTAL LOUVER
11FRAME-VERT & LINK ASSY
12LINK-VERT LOUVER RH
13LINK-VERT LOUVER LH
14CLIP-DETENT
15WCI 8017353
15AWCI 8016175
17SCREW-FRONT
18WCI 3200420
19DOOR-FRONT
20TRACK – FILTER
21FILTER-AIR FRAMED
22PANEL & DOOR ASSY
23PLATE-NAME
24WCI 3002435
