AR24NS8F1 06 – WINDOW MOUNTING PARTS – Aparts

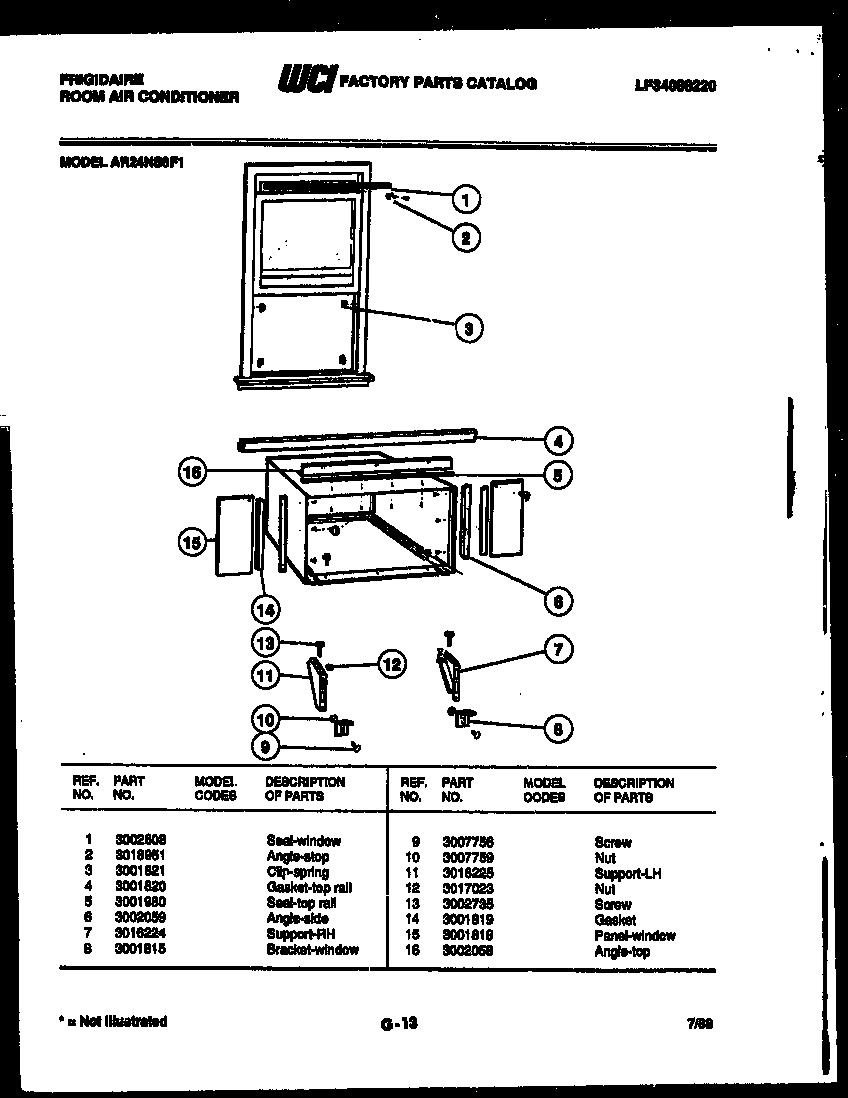

AR24NS8F1 06 – WINDOW MOUNTING PARTS

Products

Position	Product
1	SEAL - WINDOW
2	WCI 3018951
3	CLIP - SPRING
4	WCI 3001820
5	WCI 3001980
6	WCI 3002059
7	WCI 3016224
8	BRACKET - SUPPORT
9	SCREW - SILL SUPT
10	NUT - BRACKET
11	WCI 3016225
12	316205500 Frigidaire Oven Nut
13	WCI 3002735
14	WCI 3001819
15	WCI 3001818
16	WCI 3002058
