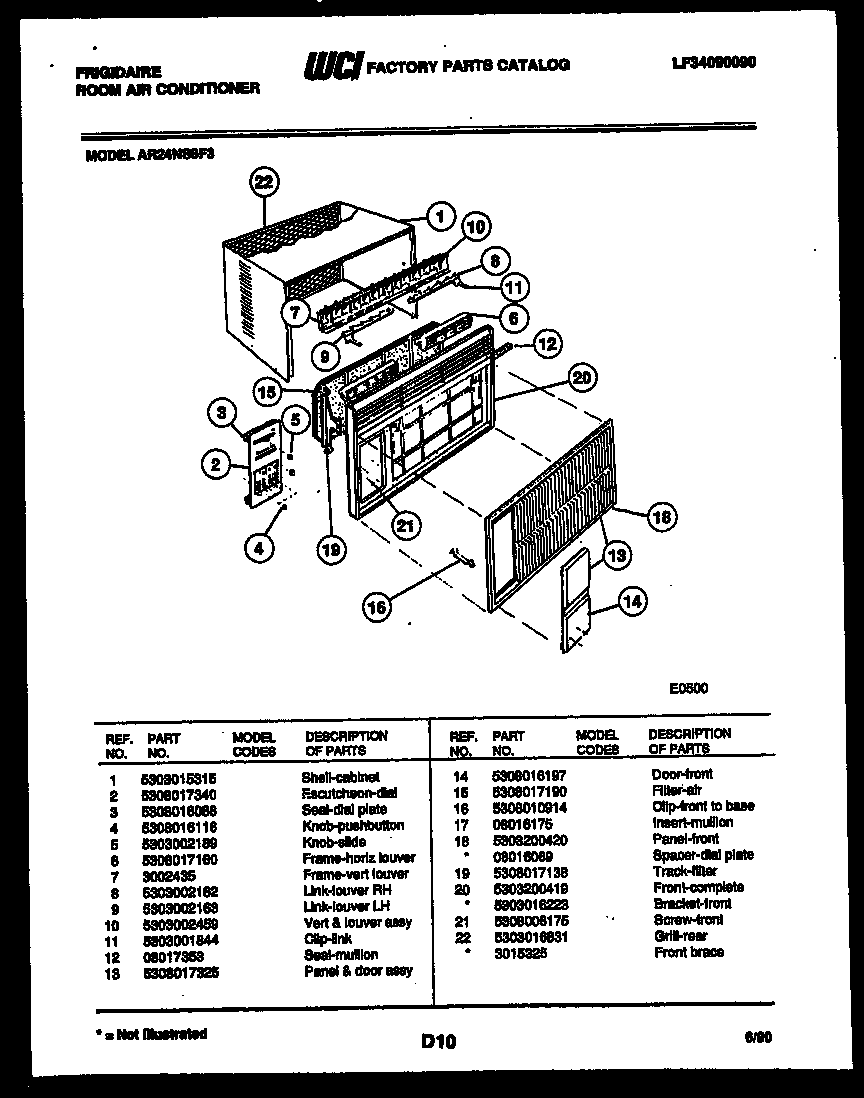

AR24NS8F3 02 – CABINET PARTS

AR24NS8F3 02 – CABINET PARTS

Written by

in

AR24NS8F3 02 – CABINET PARTS

Products

PositionProduct
*32454BRACE – FRONT (NON-ILLUSTRATED)
1SHELL-CABINET
2WCI 5308017340
3SEAL-DIAL PLATE
4WCI 5308016116
5WCI 5303002189
6FRAME-HORIZ. LOUVER
7WCI 3002435
8LINK-VERT LOUVER RH
9LINK-VERT LOUVER LH
10WCI 5303002459
11WCI 5303001844
12WCI 08017353
13WCI 5308017325
14WCI 5308016197
15WCI 5308017190
16CLIP-FRONT TO BASE
17WCI 08016175
18WCI 5303200420
18ASEAL-SPACER DIAL
19WCI 5308017138
20AWCI 5303016223
20WCI 5303200419
21SCREW-FRONT
22WCI 5303016831
