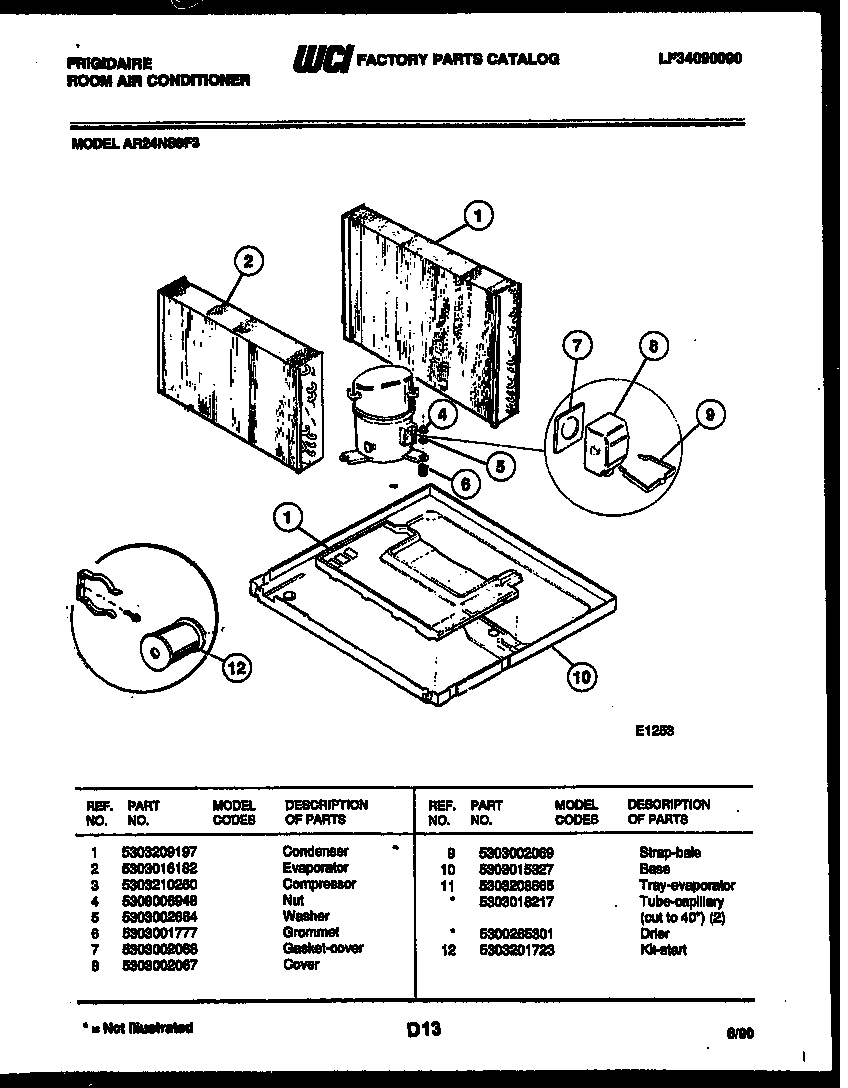

AR24NS8F3 05 – SYSTEM PARTS

Written by

Products

Position	Product
1	WCI 5303209197
2	WCI 5303016182
3	WCI 5303210260
4	NUT,COMPRESSOR MTG ,(3)
5	WASHER,COMPRESSOR MTG
6	WCI 5303001777
7	WCI 5303002068
8	COVER, TERMINAL
9	CLAMP – COVER
10	WCI 5303015327
11	WCI 5303208665
11A	TUBE-CAPILLARY (CUT TO 40“) (2)
11B	5300265301 Frigidaire Air Conditioner P1 Filter Drier
12	STARTER KIT
