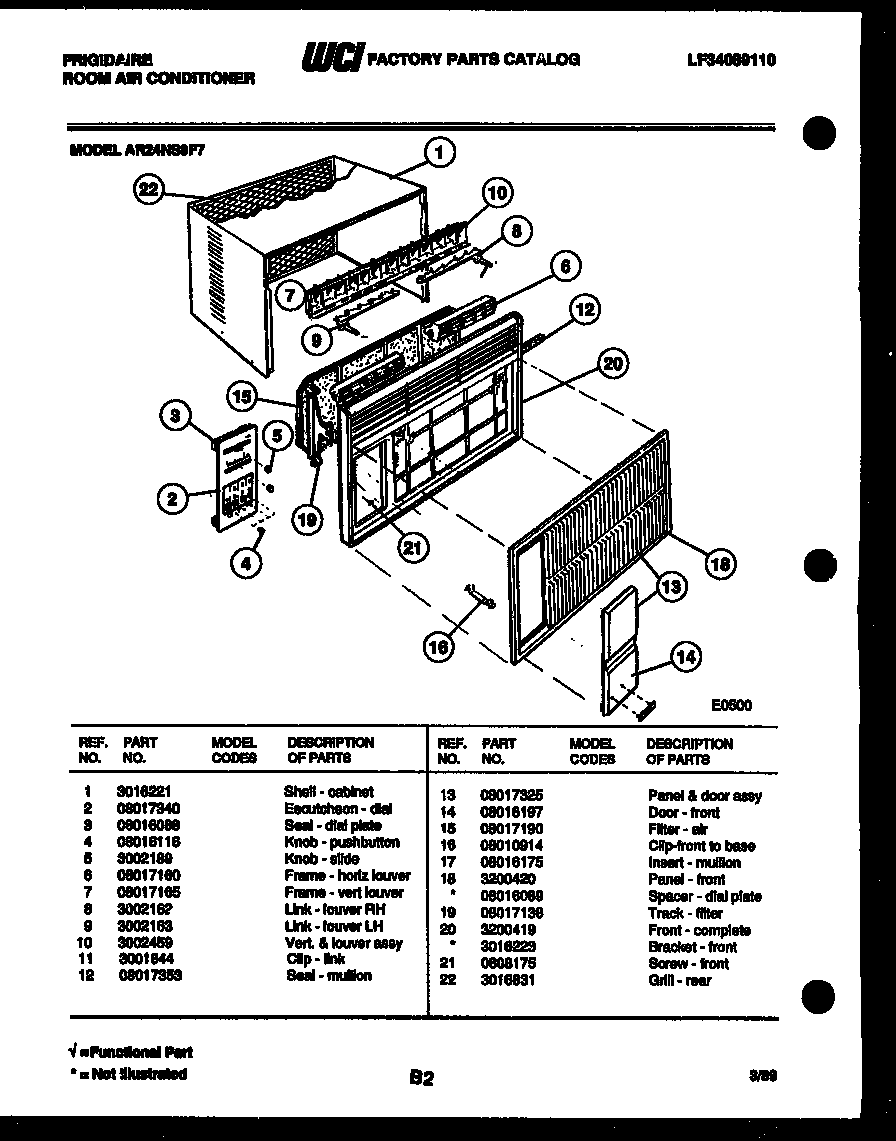

AR24NS8F7 02 – CABINET PARTS

Products

Position	Product
1	WCI 3016221
2	WCI 08017340
3	SEAL – DIAL PLATE
4	WCI 08016116
5	WCI 3002189
6	WCI 08017160
7	WCI 08017165
8	LINK-VERT LOUVER RH
9	LINK-VERT LOUVER LH
10	FRAME-VERT & LINK ASSY
11	CLIP-DETENT
12	WCI 08017353
13	WCI 08017325
14	WCI 08016197
15	WCI 08017190
16	CLIP-FRONT TO BASE
17	WCI 08016175
18	WCI 3200420
18A	SEAL-SPACER DIAL
19	WCI 08017138
20	WCI 3200419
20A	BRACKET-FRAME FRONT
21	WCI 0808175
22	GRILL – REAR SHELL (NON-ILLUSTRATED)
