AR25NS5N1 02 – CABINET PARTS – Aparts

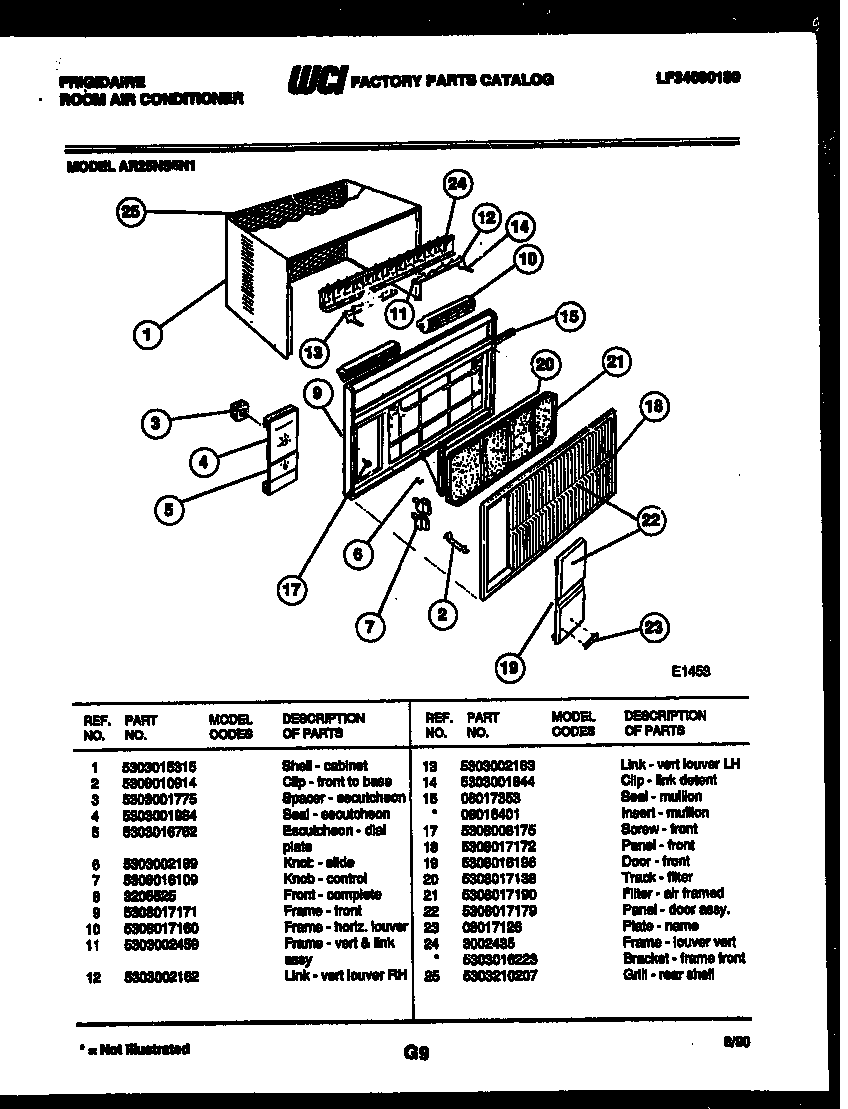

AR25NS5N1 02 – CABINET PARTS

Products

Position	Product
1	SHELL-CABINET
2	CLIP-FRONT TO BASE
3	WCI 5303001775
4	WCI 5303001984
5	ESCUTHEON, DIAL PLATE
6	WCI 5303002189
7	WCI 5308016109
8	WCI 3205525
9	WCI 5308017171
10	FRAME-HORIZ. LOUVER
11	WCI 5303002459
12	LINK-VERT LOUVER RH
13	LINK-VERT LOUVER LH
14	WCI 5303001844
15A	INSERT, MULLION (NI)
15	WCI 08017353
17	SCREW-FRONT
18	WCI 5308017172
19	WCI 5308016196
20	WCI 5308017138
21	WCI 5308017190
22	WCI 5308017179
23	PLATE-NAME
24	WCI 3002435
24A	WCI 5303016223
25	WCI 5303210207
