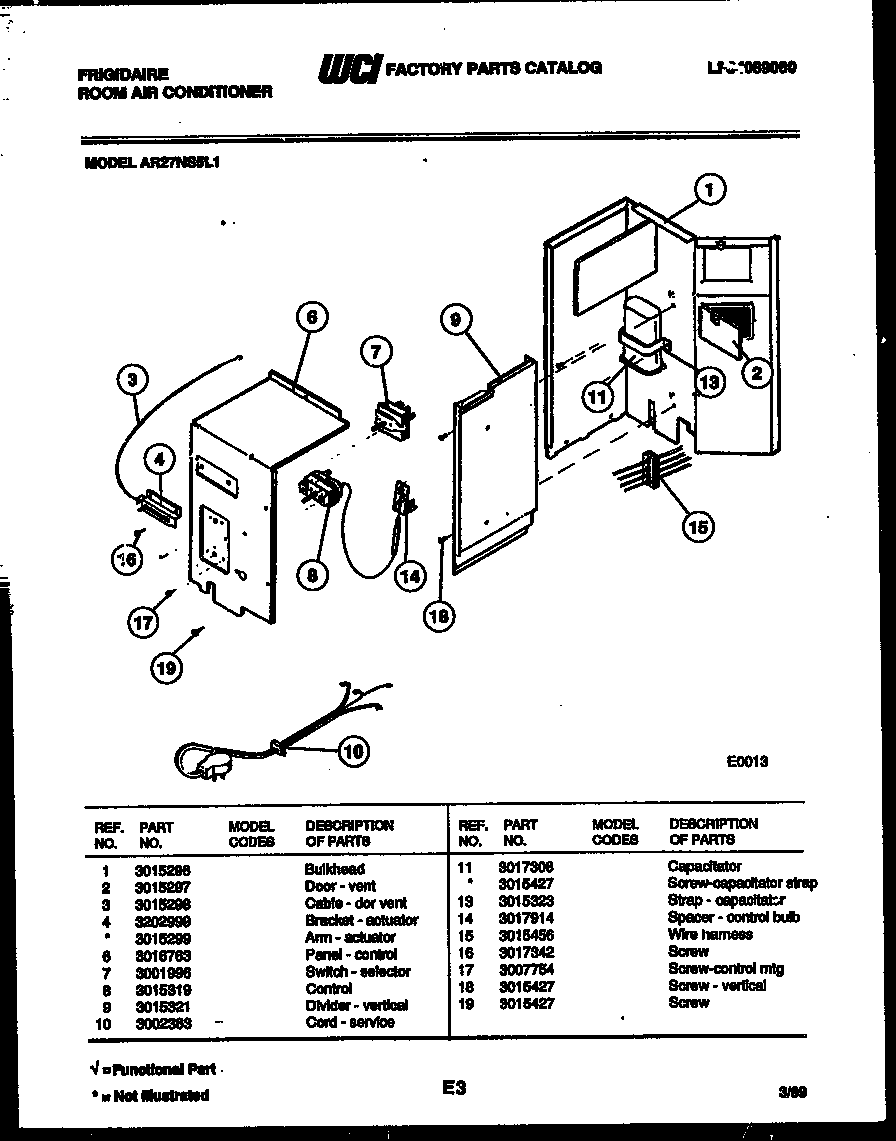

AR27NS5L1 03 – ELECTRICAL PARTS

Written by

Products

Position	Product
1	WCI 3015296
2	WCI 3015297
3	CABLE – DOR VENT
4A	WCI 3015299
4	WCI 3202999
6	WCI 3016763
7	WCI 3001996
8	WCI 3015319
9	WCI 3015321
10	WCI 3002363
11	CAPACITOR
13	STRAP – CAPACITATOR
14	SPACER – CONTROL BULB
15	WIRE HARNESS
16	SCREW
17	SCREW-CONT AND SWITCH MTG (NON-ILLUSTRATED)
19	134178901 Frigidaire Screw
