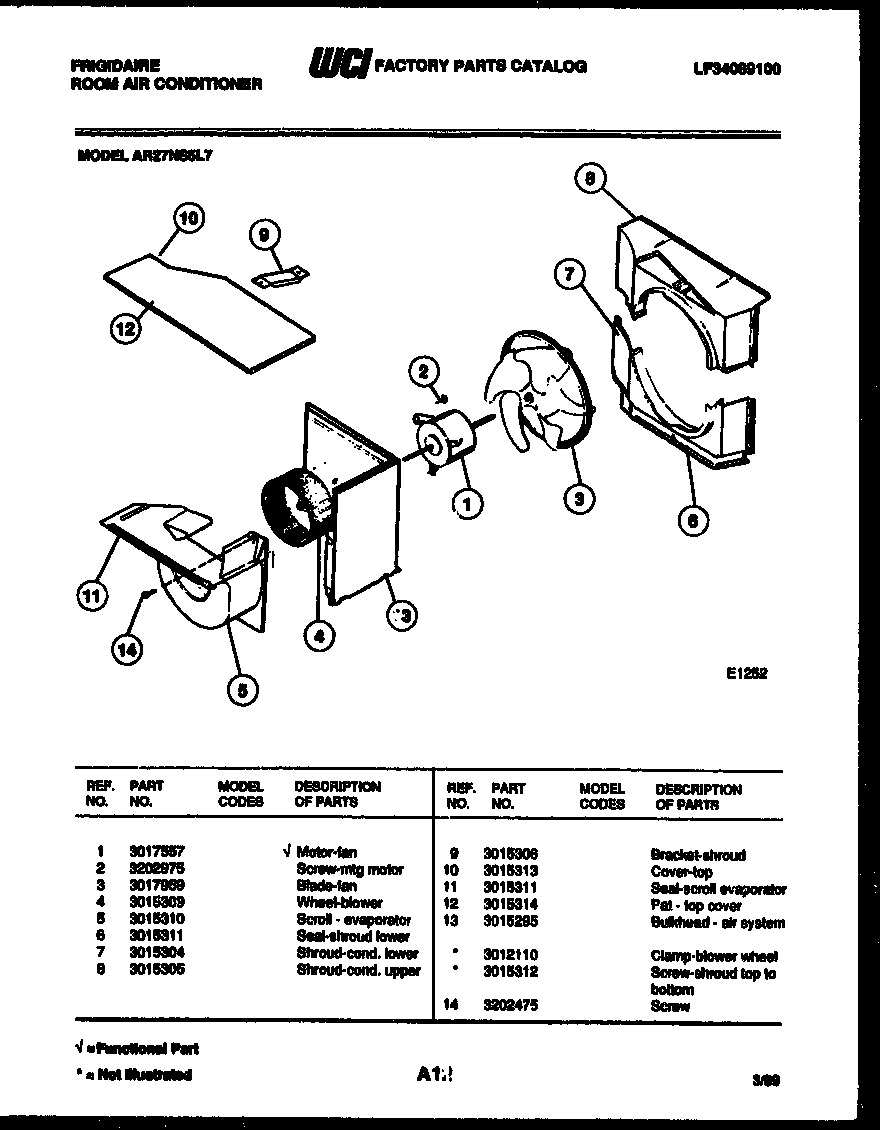

AR27NS5L7 04 – AIR HANDLING PARTS

Written by

Products

Position	Product
1	WCI 3017557
2	131202300 Frigidaire Screw
3	WCI 3017959
4	WCI 3015309
5	SCROLL – EVAPORATOR
7	SHROUD-COND. LOWER
8	SHROUD-COND. UPPER
9	BRACKET-SHROUD
10	WCI 3015313
11	SEAL-SCROLL EVAPORATOR
12	WCI 3015314
13A	CLAMP-BLOWER WHEEL (NON-ILLUSTRATED)
13	WCI 3015295
13B	134178901 Frigidaire Screw
14	WCI 3202475
