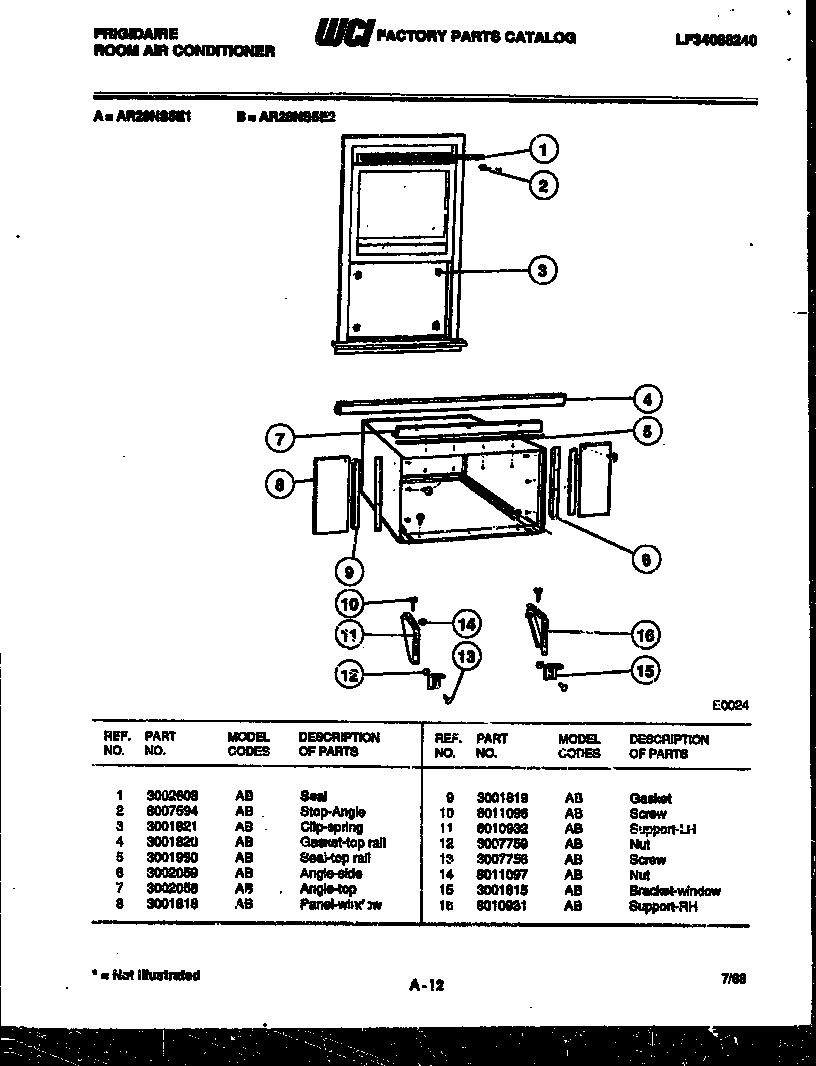

AR28NS5E1 06 – WINDOW MOUNTING PARTS – Aparts

AR28NS5E1 06 – WINDOW MOUNTING PARTS

Products

Position	Product
1	SEAL - WINDOW
2	STOP, SASH
3	CLIP - SPRING
4	WCI 3001820
5	WCI 3001980
6	WCI 3002059
7	WCI 3002058
8	WCI 3001818
9	WCI 3001819
10	WCI 8011096
11	WCI 8010932
12	NUT - BRACKET
13	SCREW - SILL SUPT
14	SCREW
15	BRACKET - SUPPORT
16	WCI 8010931
