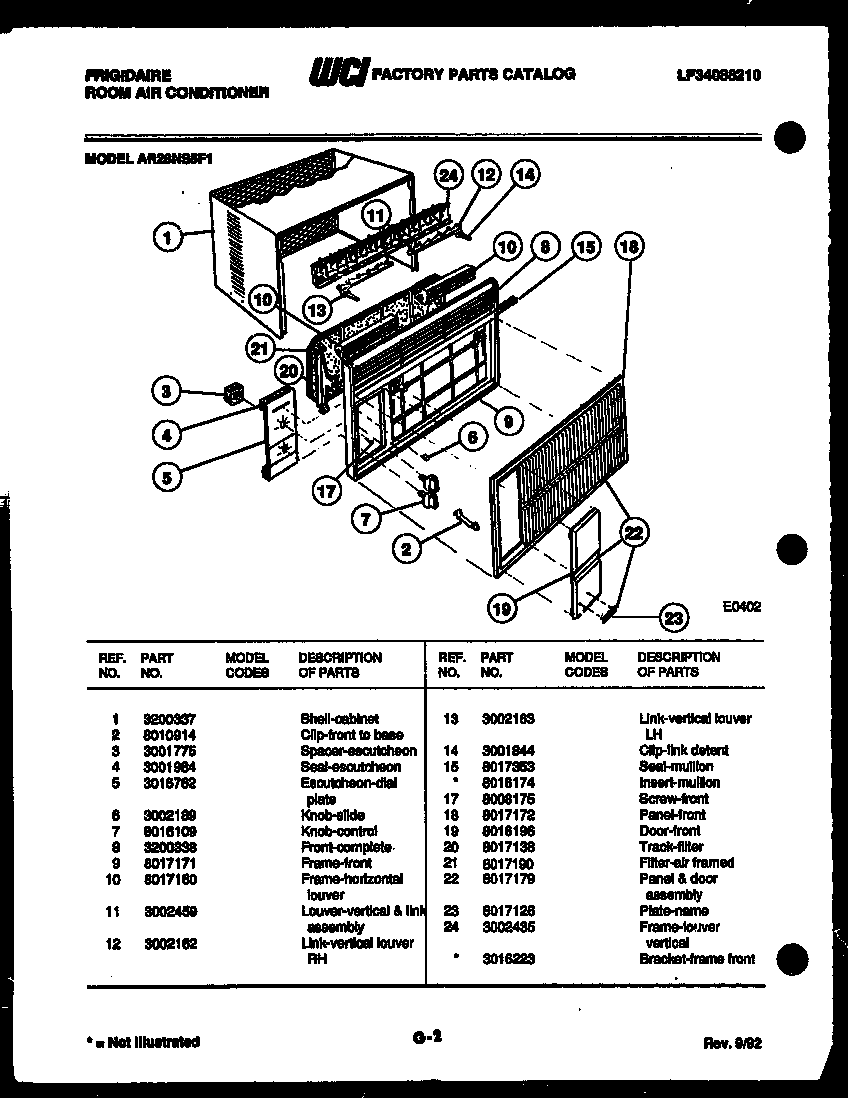

AR28NS5F1 02 – CABINET PARTS

Products

Position	Product
*17290	BRACKET-FRAME FRONT
1	SHELL-CABINET
2	CLIP-FRONT TO BASE
3	SPACER-DIAL PLATE, ( NON-ILLUSTRATED)
4	SEAL-DIAL PLATE
5	WCI 3016762
6	WCI 3002189
7	WCI 8016109
8	WCI 3200338
9	WCI 8017171
10	FRAME-HORIZONTAL LOUVER
11	FRAME-VERT & LINK ASSY
12	LINK-VERT LOUVER RH
13A	LINK-VERT LOUVER LH
14	CLIP-DETENT
15A	INSERT-MULLION (NON-ILLUSTRATED)
15	WCI 8017353
17	SCREW-FRONT
18	WCI 8017172
19	DOOR-FRONT
20	TRACK – FILTER
21	FILTER-AIR FRAMED
22	WCI 8017179
23	PLATE-NAME
24	WCI 3002435
