ARC13AHCWL2 ROOM AIR CONDITIONER

ARC13AHCWL2 ROOM AIR CONDITIONER

Written by

in

ARC13AHCWL2 ROOM AIR CONDITIONER

Products

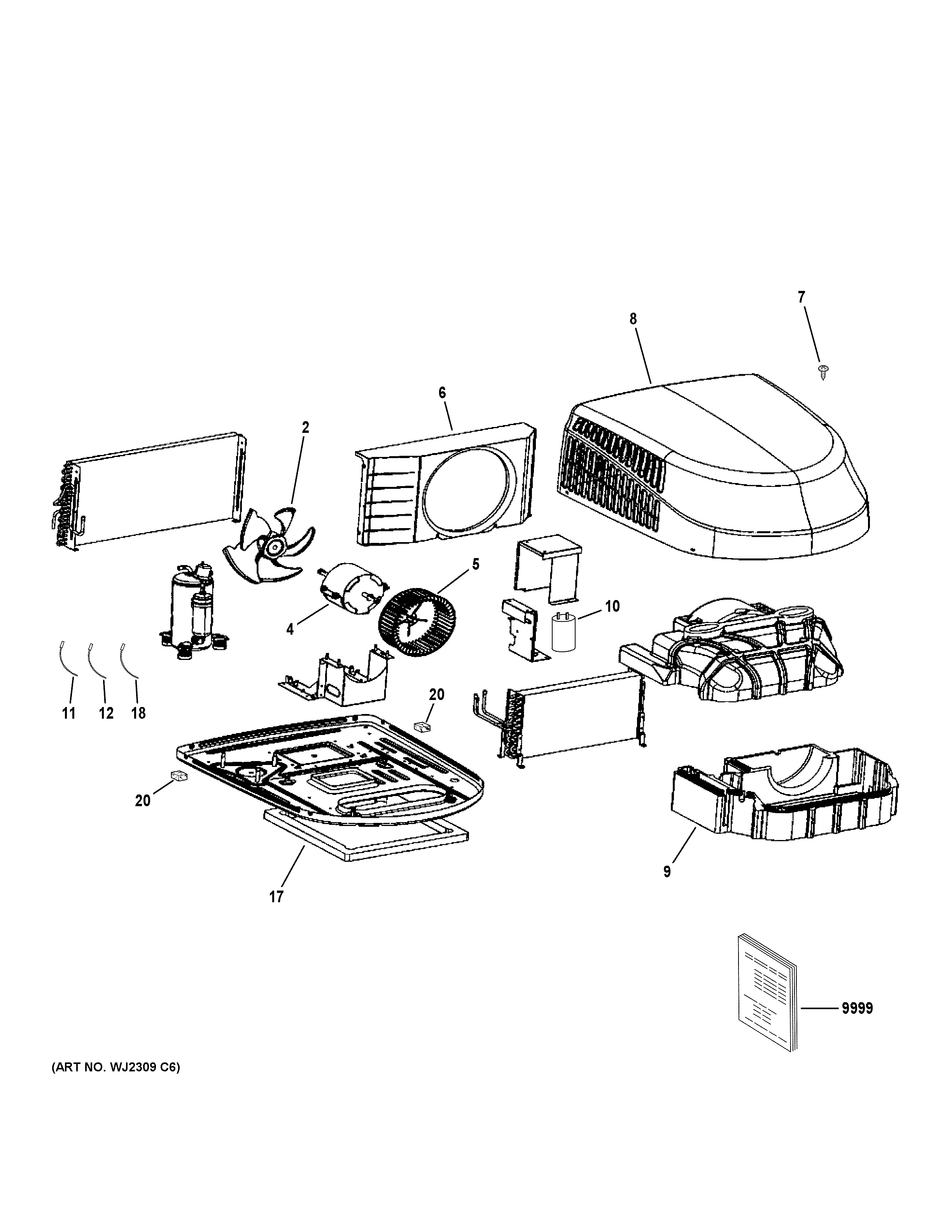

PositionProduct
2WJ73X25397 GE Outdoor Fan Blade
4WJ94X25405 GE Fan Motor
5WJ73X25396 GE Indoor Blower
6WJ76X25398 GE Outdoor Fan Shroud
7WJ01X25409 GE Outdoor Shroud Cover Screws
8WJ76X25399 GE Outdoor Cover Shroud White
9WJ76X28334 GE Indoor Cover Blower
10WJ20X25406 GE Air Conditioner Run Capacitor
11WJ35X25408 GE Main Harness
12WJ35X25407 GE Compressor Harness
17WJ43X25403 GE Roof Gasket
18WJ26X27378 GE Indoor Coil Sensor
20WP43X28653 GE Foam Base Pan
9999PM OWNERS MANUAL
