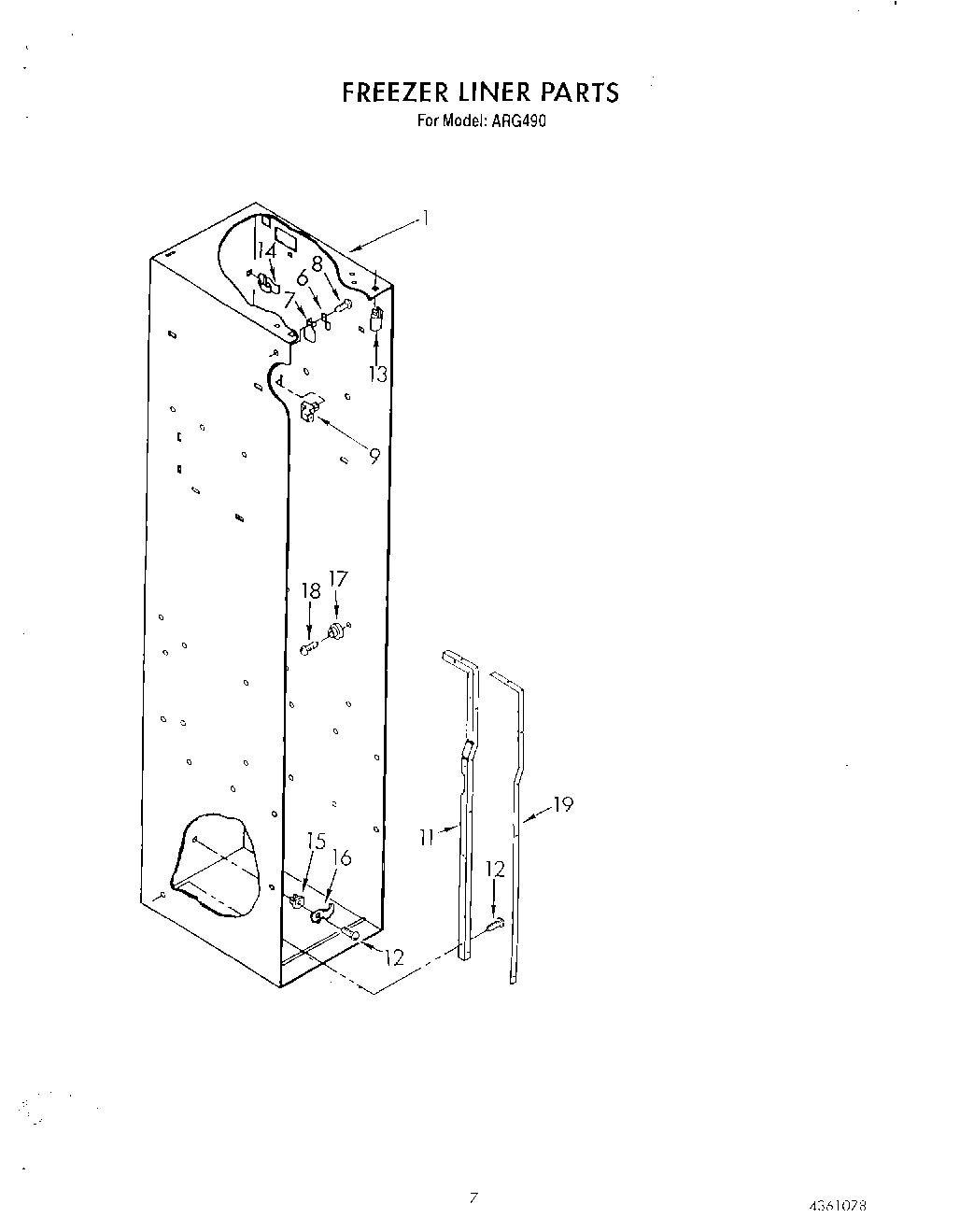

ARG490 06 – FREEZER LINER

ARG490 06 – FREEZER LINER

Written by

in

ARG490 06 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
6Support Clip
7Screw Grommet
8SCREW
9Support, Stud
11Rail, Evaporator Cover (Right Side)
11Rail, Evaporator Cover (Left Side)
12W11624204 Whirlpool Screw
13Spacer, Control Panel (3)
142215823 Whirlpool Refrigerator Clip
15Grommet
161112260 Whirlpool EV Support
17Stud
18Screw
19Gasket, Evaporator Cover (2)
