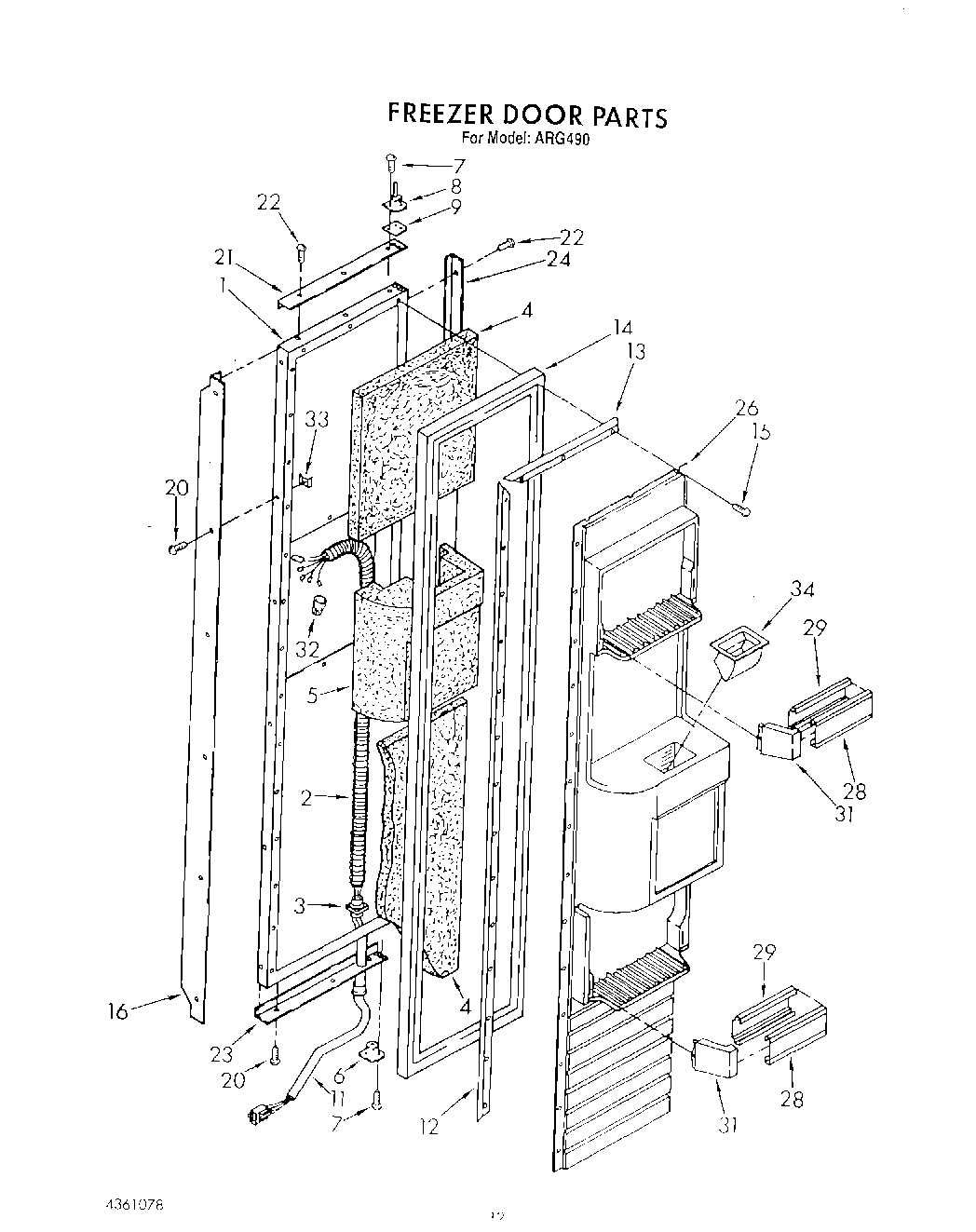

ARG490 11 – FREEZER DOOR

Products

Position	Product
1	Exterior Door Panel, Freezer (Also Order Item 4)
2	Tube, Wiring
3	Retainer, Tube
4	WPL 876029
5	Insulation, Dispenser
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge, Top
9	Spacer
11	Wiring Harness, Freezer Door
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	Door Gasket, Magnetic
15	WP489069 Whirlpool Compactor Screw
16	Handle, Door
20	WP488729 Whirlpool Refrigerator Door Screw
21	Trim (Top)
22	Screw, 6-32 x 1/2
23	Trim (Bottom)
24	Trim (Side)
26	Panel, Interior Door
28	Door Shelf, Outer Trim
29	Door Shelf, Inner Trim
31	Support, Trim Ends
32	Wire Connector
33	WP939101 Whirlpool Refrigerator Plate
34	Ice Chute
