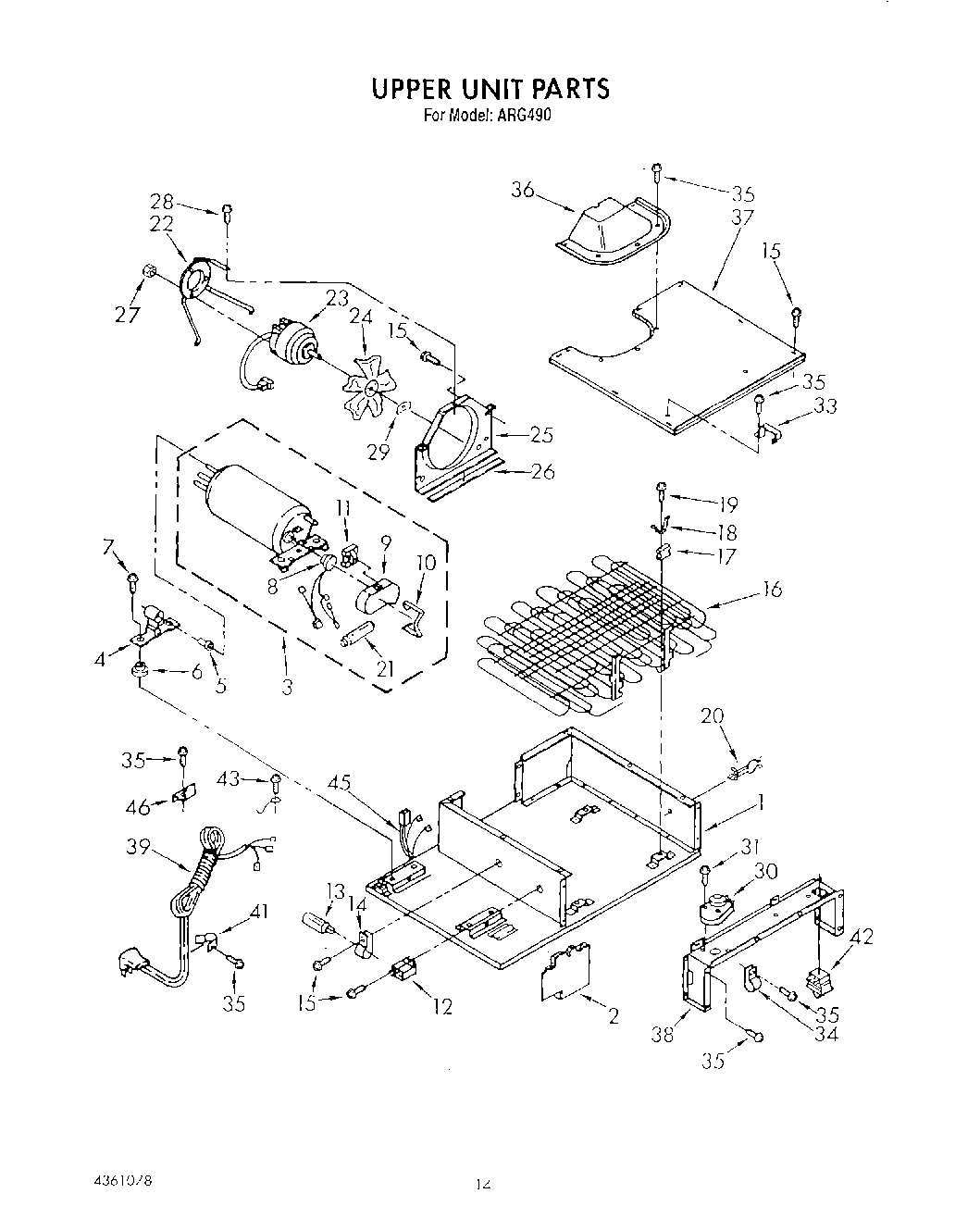

ARG490 13 – UPPER UNIT

Products

Position	Product
	978030 Whirlpool Refrigerator Valve
	876764 Whirlpool Refrigerator Primary Valve
	978027 Whirlpool Refrigerator Primary Valve
	WP978025 Whirlpool Refrigerator Valve
	VALVE, ACCESS (1/2“)
	978026 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
1	Assembly, Unit Base
2	Assembly, Sound Barrier
3	Compressor (Includes Items 8, 9, 10, 11, 12, 13, 21) (Also Order)
3	876765 Whirlpool Primary Mounting Kit Refrigerator
4	Bracket, Mounting
5	Grommet, Compressor Bracket
6	Grommet, Compressor (4)
7	Screw (4)
8	Overload (Production) (Includes Relay)
8	Overload (Service) (Includes Relay)
9	Terminal Cover (Service)
9	Terminal Cover
10	Strap, Cover
11	Relay (See Overload)
12	Running Capacitor
12	WPW10662129 Whirlpool Refrigerator Run Capacitor
13	Capacitor, Start
14	Tube Clamp
15	WP965173 Whirlpool Dishwasher Screw
16	Condenser
17	Grommet (4)
18	Clamp (4)
19	Screw
20	Wire Tie (2)
21	Drier
22	Mounting Bracket, Motor
23	Motor, Fan
24	Blade, Fan
25	Orifice, Fan
26	Gasket, Orifice
27	WP488130 Whirlpool Air Conditioner Nut
29	WP486692 Whirlpool Refrigerator Nut
30	Defrost Timer, (10 Hr.)
31	WP3388228 Whirlpool Screw
33	Clamp, Tube (2) ()
33	Clamp, Tube (2)
33	Clamp, Tube (2) ()
34	489348 Whirlpool Refrigerator Tube Clamp
35	W11624204 Whirlpool Screw
36	Cover, Fan
37	Cover, Condenser
38	Extension, Housing
39	Cord, Service
41	Clamp, Cord (2)
42	WP2266802 Whirlpool Refrigerator Switch
43	303776 Whirlpool Dishwasher Screw
45	Wiring Harness, Unit Compartment
46	Stop
